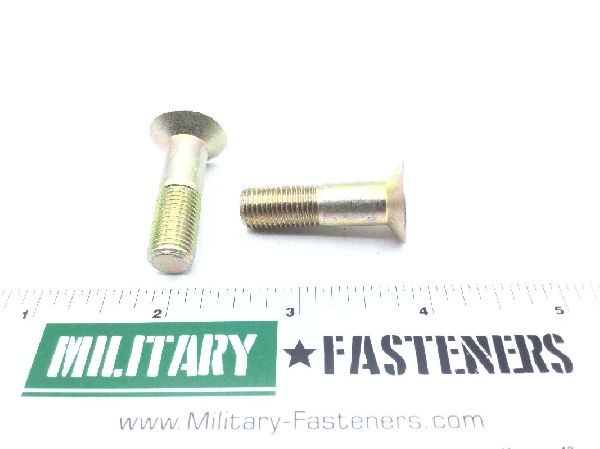

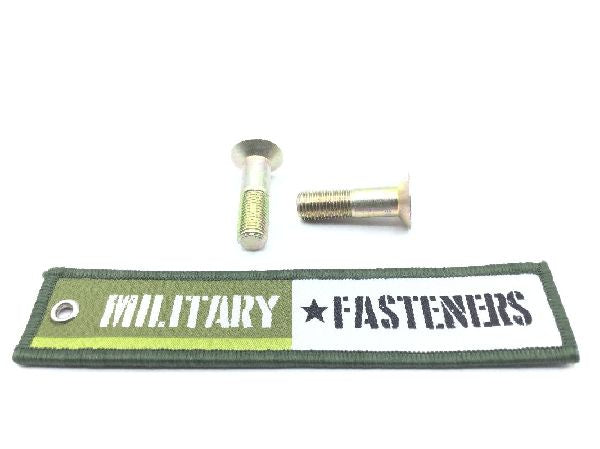

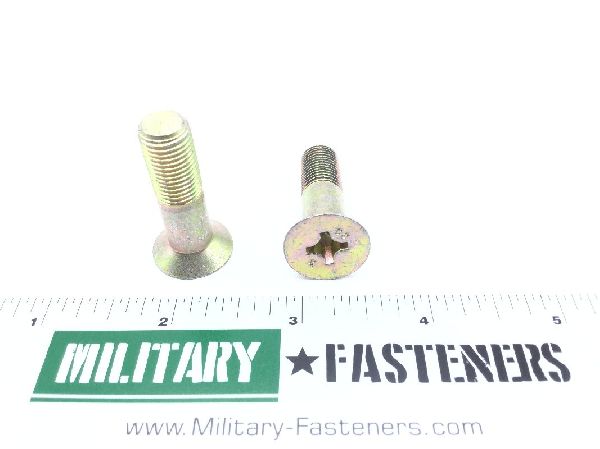

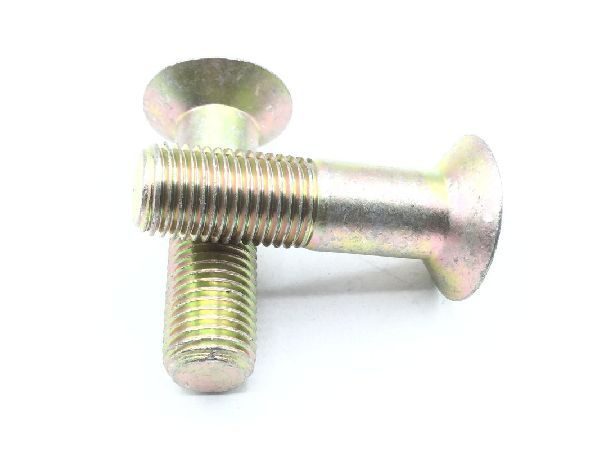

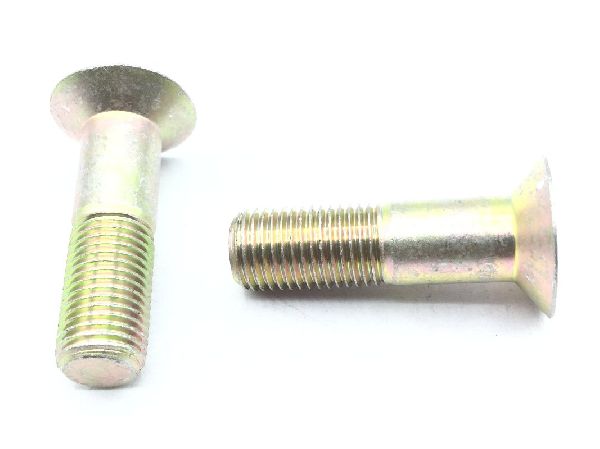

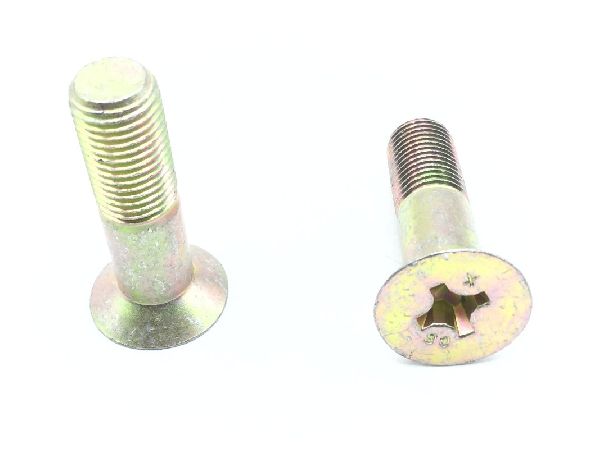

MS24694S196 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $25.72

Units per Pack 2

Price per Pack $51.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $51.44

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.328 inches and 1.375 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-6050 military specification 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.573 inches and 0.734 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.686 inches and 0.762 inches
