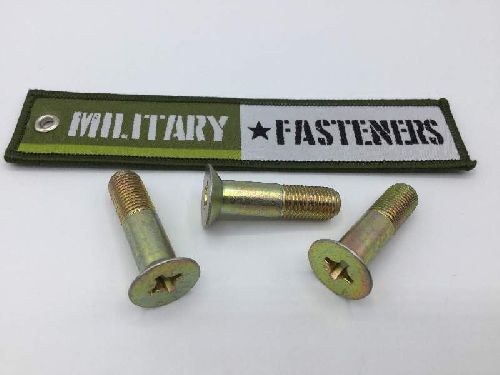

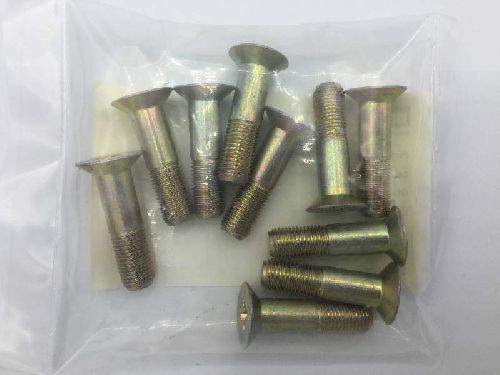

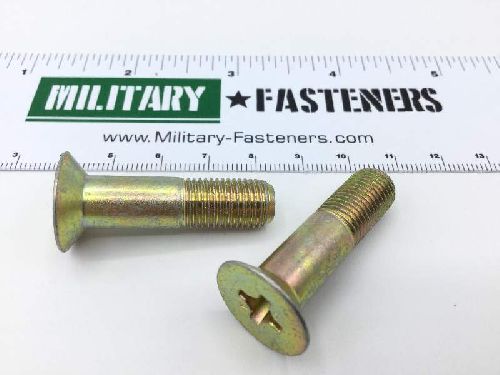

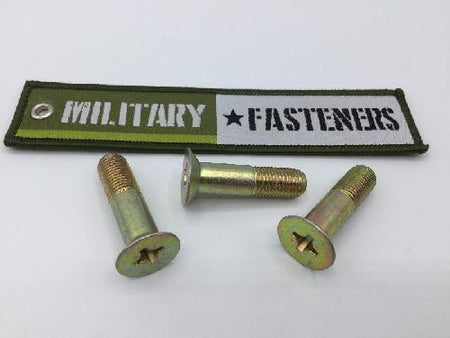

MS24694S198 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- Between 1.453 inches and 1.500 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8740 or steel comp 8630
- Screw Material Specification
- Mil-s-6049 military specification 1st material response or mil-s-6050 military specification 2nd material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 3 federal specification single treatment response
- Thread Diameter
- 0.375 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.573 inches and 0.734 inches
- Thread Qty Per Inch (tpi)
- 24
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.686 inches and 0.762 inches
