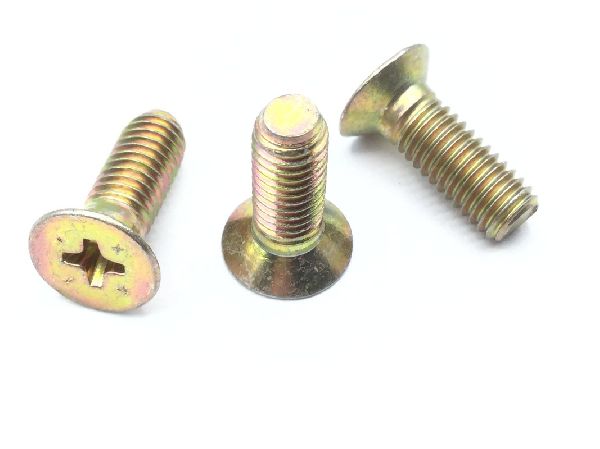

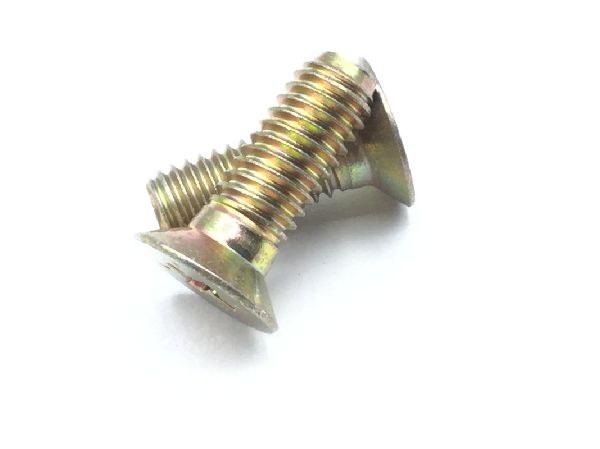

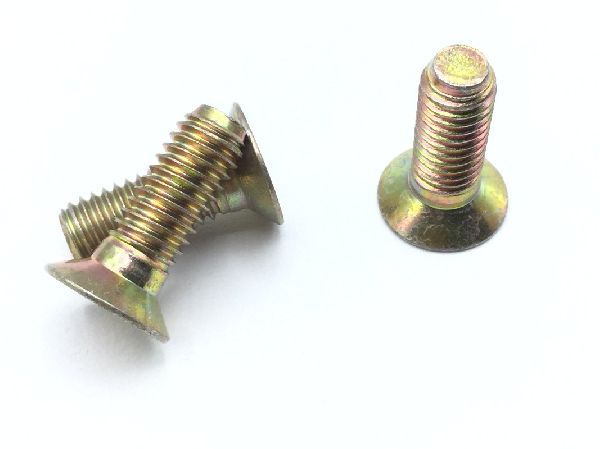

MS24694S50 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.36

Units per Pack 100

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.516 inches and 0.562 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.453 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.327 inches and 0.385 inches
