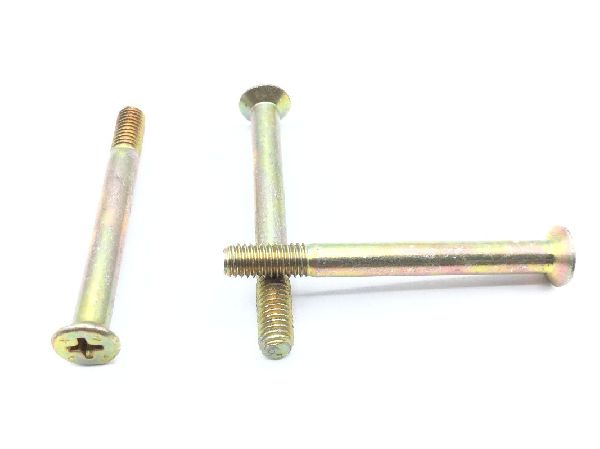

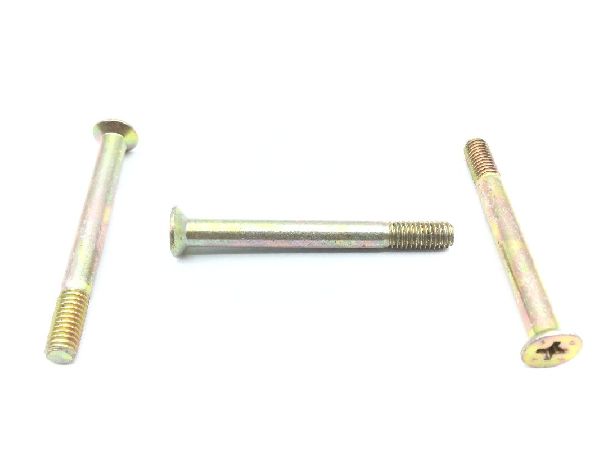

MS24694S71 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.78

Units per Pack 50

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 1.828 inches and 1.875 inches
Hardness Rating: Between 26 rockwell and 32 rockwell
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp
Screw Material Specification: Mil-s-6049 military specification 1st material response or mil-s-6050 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: 0.407 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.327 inches and 0.385 inches
