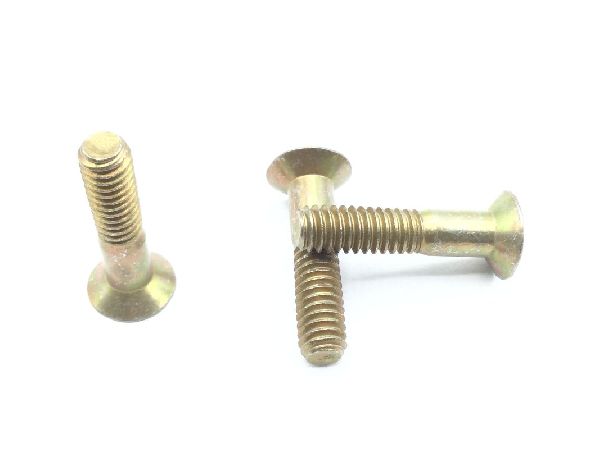

MS24694S8 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.68

Units per Pack 50

Price per Pack $34.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.00

Add item to quote

Head Style

Flat countersunk

Surface Treatment

Ty2 cl3 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.703 inches and 0.750 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6049 military specification 1st material response or mil-s-6050 military specification 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.376 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.283 inches and 0.332 inches
