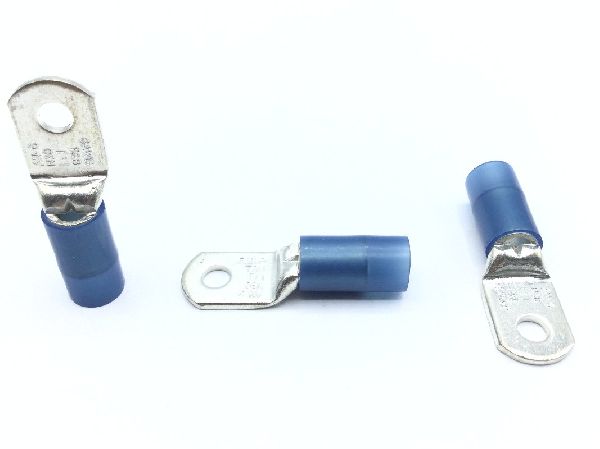

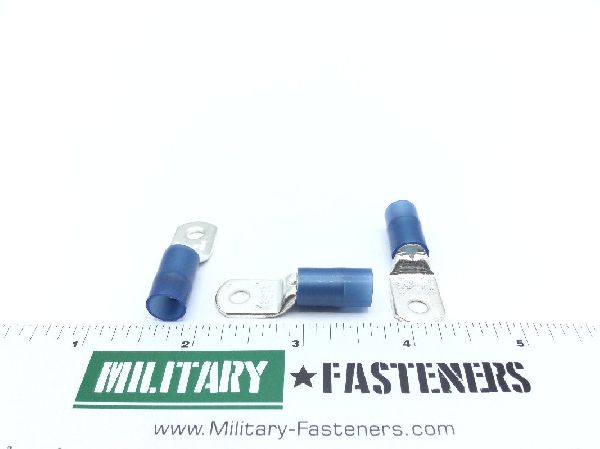

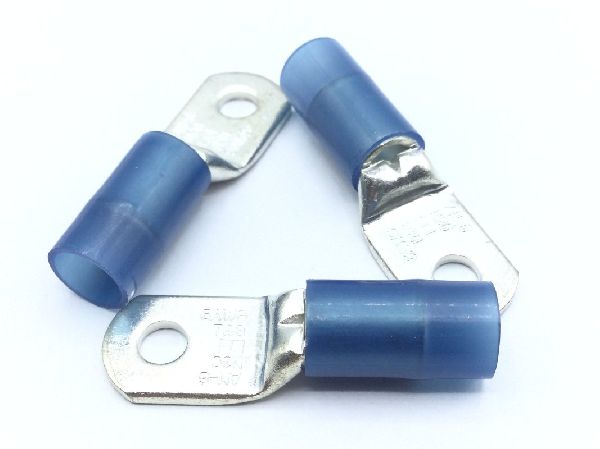

MS25036-119 Lug Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8538.90.7080

Price per Unit $4.62

Units per Pack 10

Price per Pack $46.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $46.20

Add item to quote

Material

Plastic polyamide insulation or plastic vinyl insulation

Overall Length

1.559 inches

Surface Treatment

Mil-t-10727 military specification single treatment response except insulation single layer

Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed barrel single end
Conductor Accommodation Type Style: Flat lug all ends
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: Blue
Iii End Application: Mrap - cougar; mrap - m-atv dv178; mrap - cougar cat1 a2
Largest Width: 0.503 inches all ends
Material Specification: Qq-c-502 federal specification 1st material response or qq-c-576 federal specification 2nd material response or ww-t-799 federal specification 3rd material response except insulation
Material Thickness: 0.063 inches
Maximum Conductor Size Accommodated: 6 awg
Mounting Facility Thickness: 0.063 inches
Mounting Hole Diameter: 0.201 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.481 inches
Overall Width: 0.481 inches
