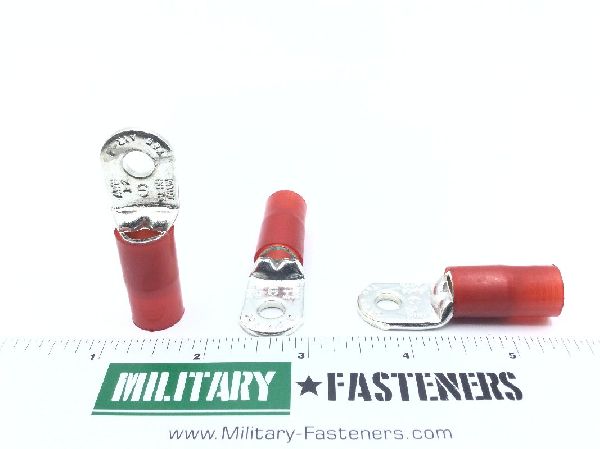

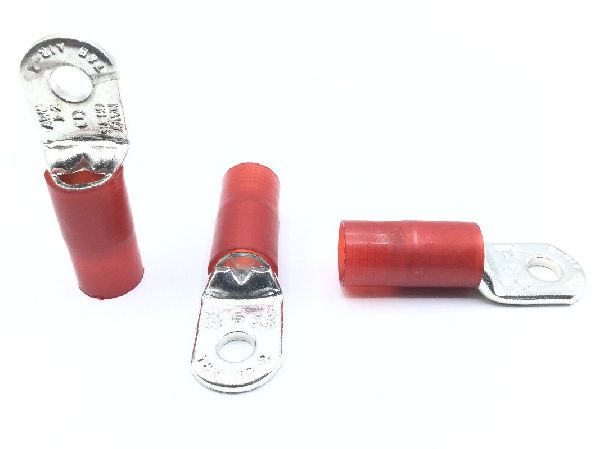

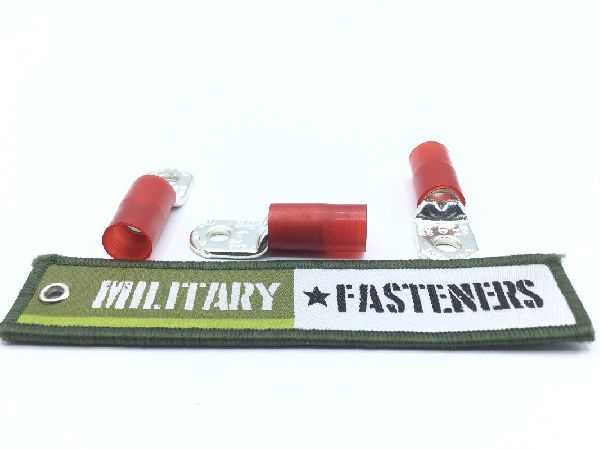

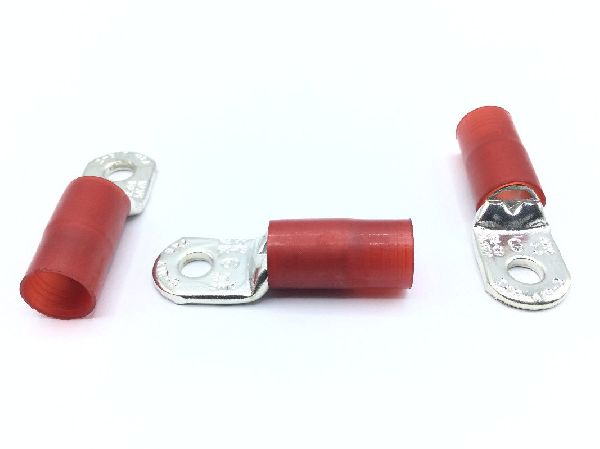

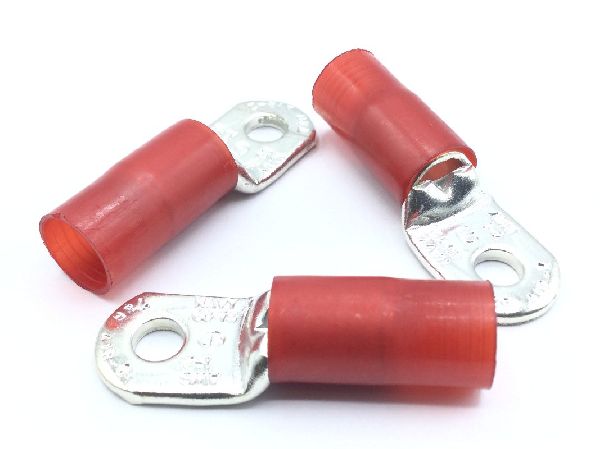

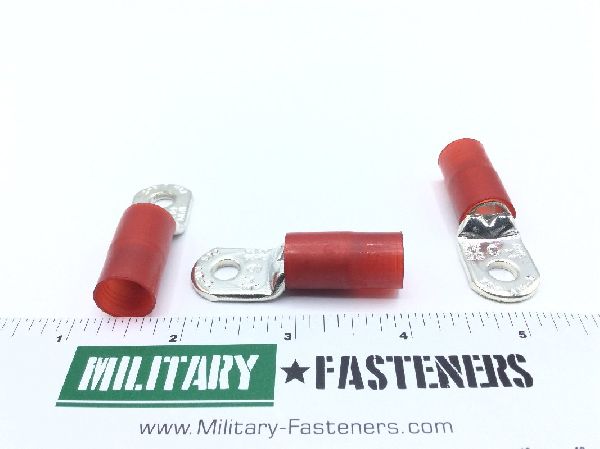

MS25036-126 Lug Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $11.84

Units per Pack 10

Price per Pack $118.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $118.40

Add item to quote

Material

Copper alloy except insulation

Overall Length

2.069 inches

Surface Treatment

type 2 military specification single treatment response except insulation single layer mil-t-10727

Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed barrel single end
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: Red
Material Thickness: 0.109 inches
Maximum Conductor Size Accommodated: 2 awg
Mounting Facility Thickness: 0.109 inches
Mounting Hole Diameter: 0.266 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.711 inches
Overall Width: 0.711 inches
Part Name Assigned By Controlling Agency: class 1 type ii crimp style conductor lug splices terminal
