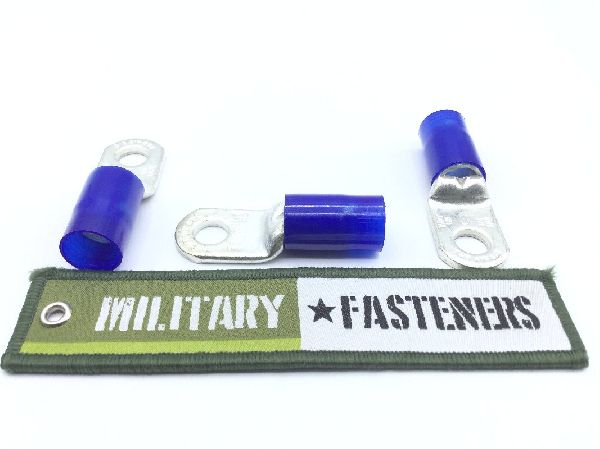

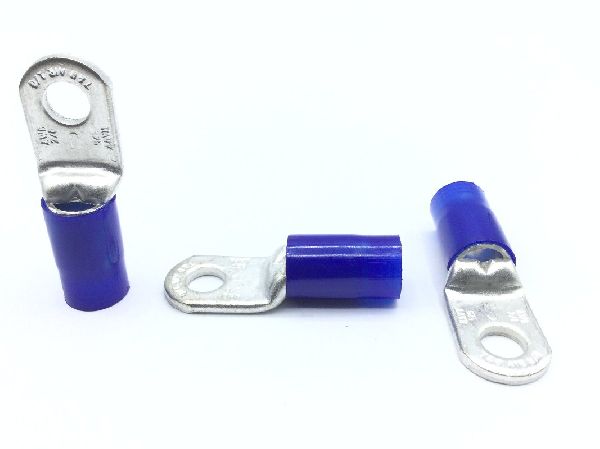

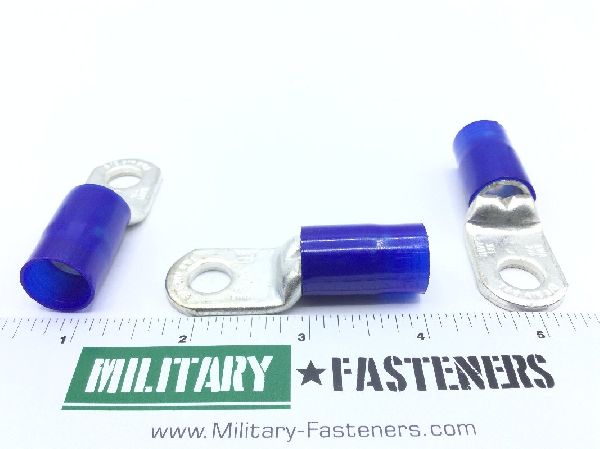

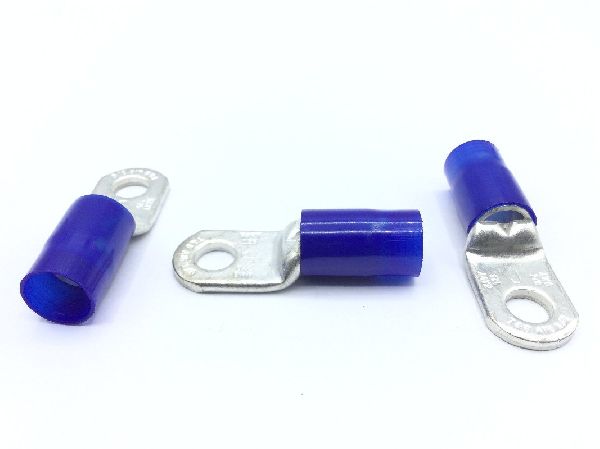

MS25036-133 Lug Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8538.90.7080

Price per Unit $10.76

Units per Pack 5

Price per Pack $53.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $53.80

Add item to quote

Material

Copper alloy except insulation

Overall Length

2.401 inches

Surface Treatment

Mil-t-10727 military specification single treatment response except insulation single layer

Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed barrel single end
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: Blue
Material Specification: Qq-c-502 federal specification 1st material response except insulation or qq-c-576 federal specification 2nd material response except insulation or ww-t-799 federal specification 3rd material response except insulation
Material Thickness: 0.082 inches
Maximum Conductor Size Accommodated: 0 awg
Mounting Facility Thickness: 0.098 inches
Mounting Hole Diameter: 0.392 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.831 inches
Overall Width: 0.831 inches
Part Name Assigned By Controlling Agency: Class 1 type ii bell mouthed ring tongue insulated copper crimp style lug terminal
