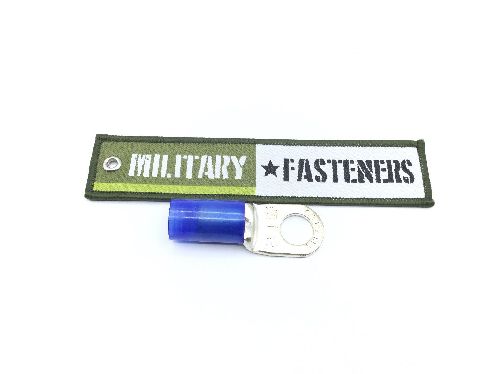

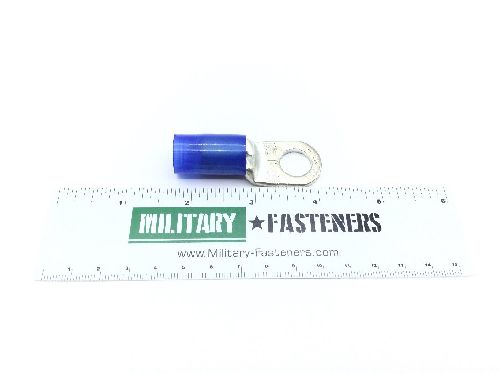

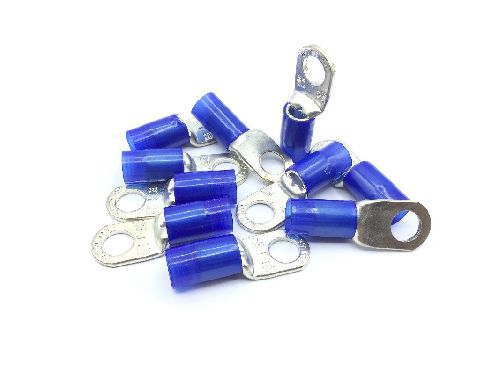

MS25036-134 Lug Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8538.90.7080

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy except insulation

Overall Length

2.638 inches

Surface Treatment

Type 1 or type 2 military specification single treatment response except insulation single layer mil-t-10727

Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed barrel single end
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: Blue
Material Specification: Qq-c-576 federal specification 1st material response except insulation or ww-t-799 federal specification 2nd material response except insulation
Material Thickness: 0.130 inches
Maximum Conductor Size Accommodated: 0 awg
Mounting Facility Thickness: 0.130 inches
Mounting Hole Diameter: 0.535 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.900 inches
Overall Width: 0.900 inches
Test Data Document: Etc.).
