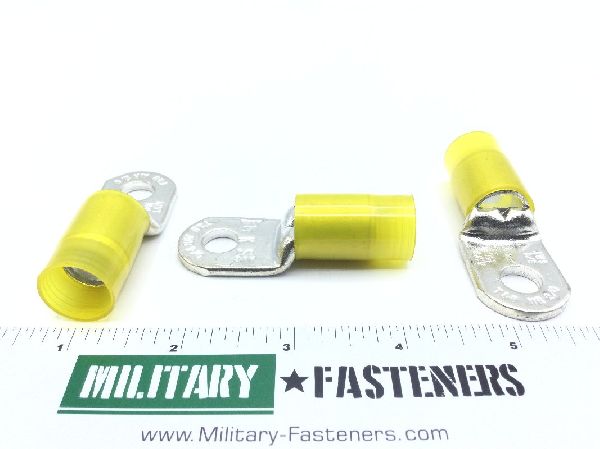

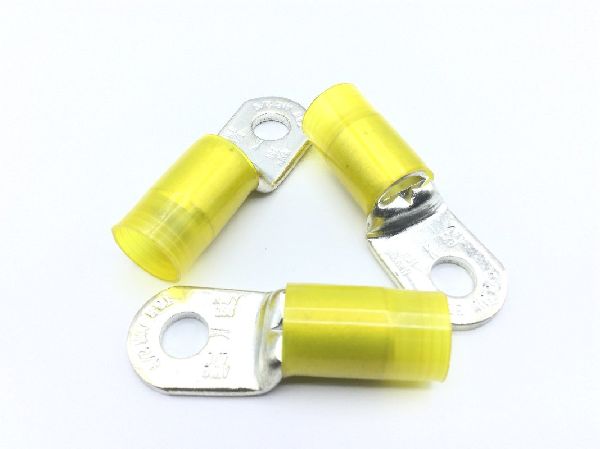

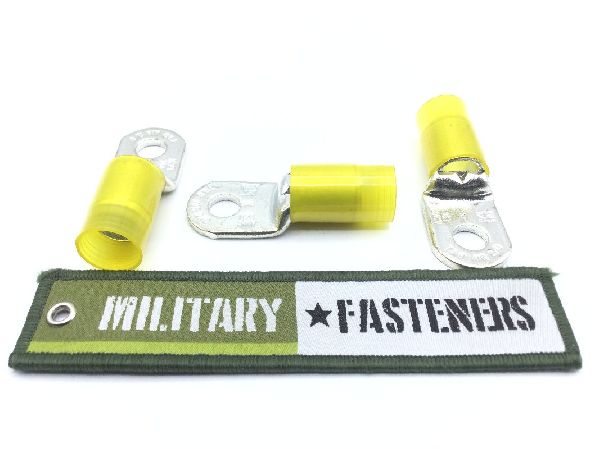

MS25036-136 Lug Terminal

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy except insulation

Overall Length

2.750 inches

Surface Treatment

Mil-t-10727 military specification single treatment response except insulation single layer

Basic Shape Style: Crimp
Conductor Accommodation Type: Recessed barrel single end
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: Yellow
Material Specification: Qq-c-502 federal specification single material response except insulation
Material Thickness: 0.102 inches
Maximum Conductor Size Accommodated: 00 awg
Mounting Facility Thickness: 0.102 inches
Mounting Hole Diameter: 0.375 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.935 inches
Overall Width: 0.935 inches
