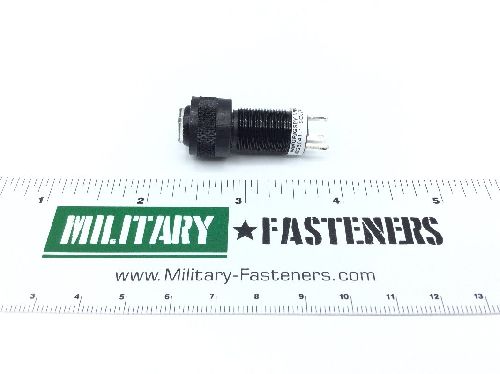

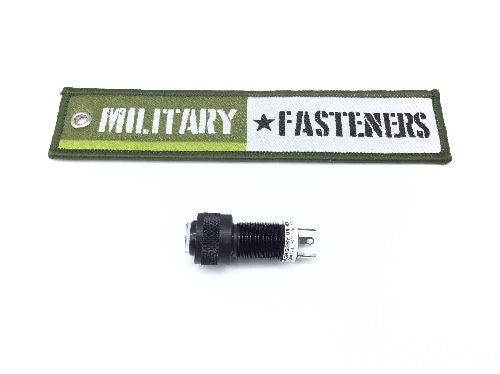

MS25041-1 Indicator Light

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Aluminum body

Overall Length

1.75 inches

Features: Dimming device and press to test
Features Provided: Dimming device and press to test
Furnished Items And Quantity: 2 hexagon nut and 1 lock washer
Lamp Base Type Accommodated: Midget flanged
Lamp Bulb Size Designator: T-1 3/4
Lamp Type Accommodated And Quantity: 1 incandescent
Lens Back Surface Condition: Smooth single light 1st position horizontal
Lens Color: Colorless single light 1st position horizontal
Lens Face Surface Condition: Smooth single light 1st position horizontal
Lens Light Transmission Characteristic: Transparent single light 1st position horizontal
Lens Mounting Method: Screw in
Lens Quantity: 1
Lens Type: threaded shank single light 1st position horizontal knurled flat
Mounting Method: Panel
Overall Diameter: 0.65 inches
Panel Accommodation Hole Diameter: 0.469 inches
Panel Thickness For Which Designed: 0.312 inches
Special Features: Dim arrow symbol cw and press to test engraved on holder
Style Designator: round lens type round frame
Terminal Type And Quantity: 3 solder lug
Transmitted Light Color: Colorless single light 1st position horizontal full display division a
