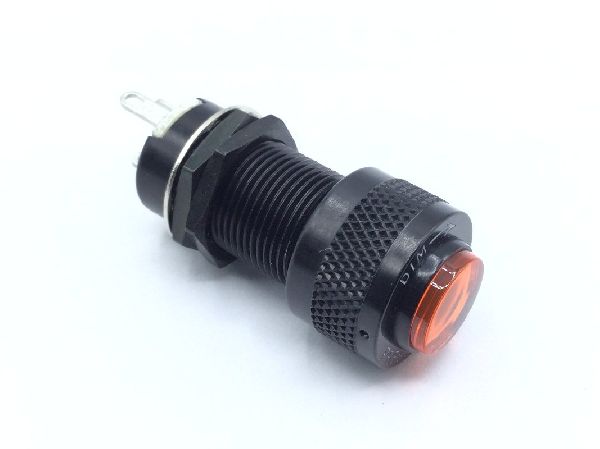

MS25041-4 Indicator Light

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $55.37

Units per Pack 1

Price per Pack $55.37

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.37

Add item to quote

Material

Aluminum body

Overall Length

1.750 inches

Features: Partial and dimming device and press to test blackout degree
Features Provided: Partial and dimming device and press to test blackout degree
Furnished Items And Quantity: 2 hexagon nut and 1 lock washer
Lamp Base Type Accommodated: Midget flanged
Lamp Bulb Size Designator: T-1 3/4
Lamp Type Accommodated And Quantity: 1 incandescent
Lens Back Surface Condition: Smooth single light 1st position horizontal
Lens Color: Amber single light 1st position horizontal
Lens Face Surface Condition: Smooth single light 1st position horizontal
Lens Light Transmission Characteristic: Transparent single light 1st position horizontal
Lens Mounting Method: Screw on
Lens Quantity: 1
Lens Type: Knurled single light 1st position horizontal flat
Mounting Method: Panel
Overall Diameter: 0.650 inches
Panel Accommodation Hole Diameter: Between 0.625 inches and 0.655 inches
Panel Thickness For Which Designed: 0.375 inches
Special Features: Dim arrow symbol and press to test engraved on holder
Style Designator: round lens type round frame
Terminal Type And Quantity: 3 solder lug
Transmitted Light Color: Amber single light 1st position horizontal full display division a
