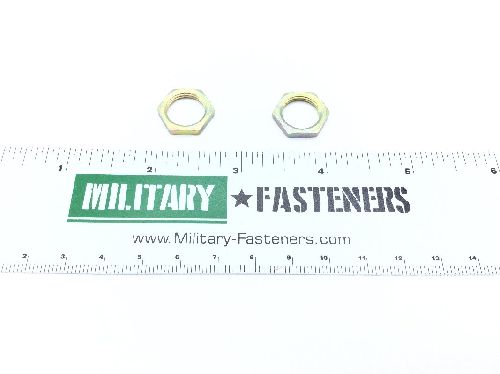

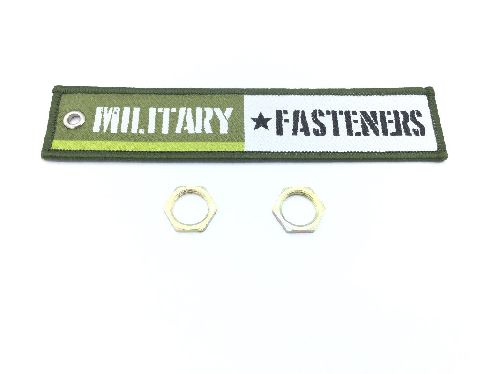

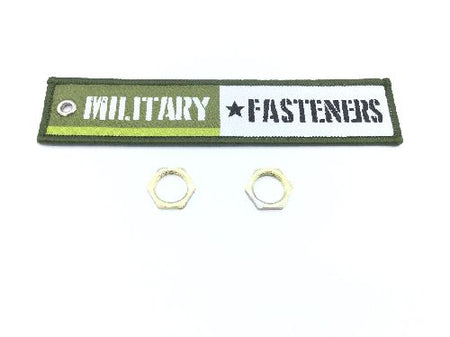

MS25082-19 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.29

Units per Pack 20

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Material

Steel

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unef (extra fine thread)

Thread Size

0.50 inches

Bearing Surface Type: Chamfered
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: 2 type
Nut Height: Between 0.104 inches and 0.114 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.609 inches and 0.640 inches
