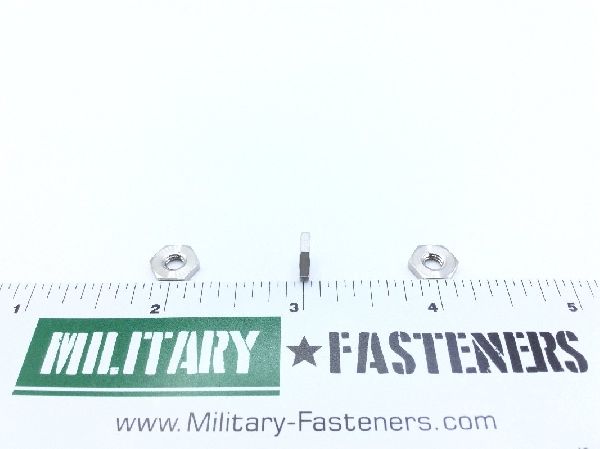

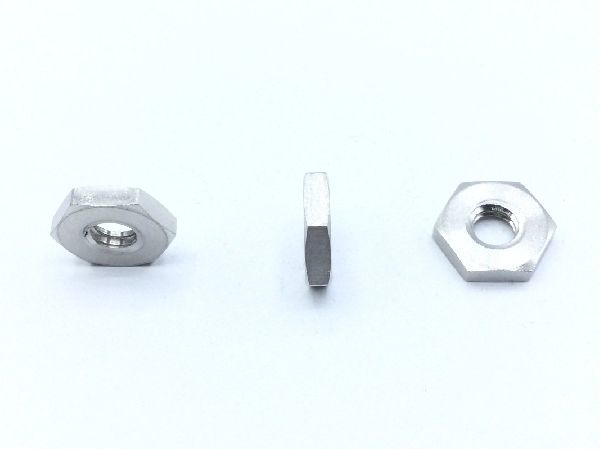

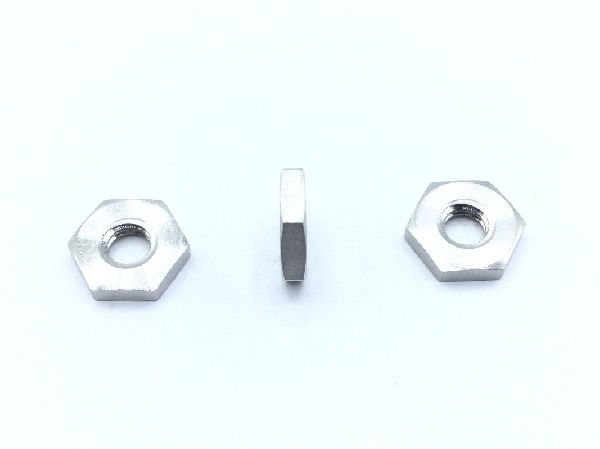

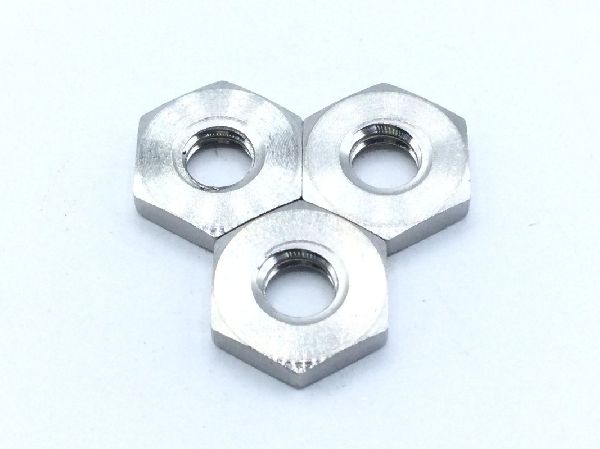

MS25082C2 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 304l or steel comp 316l or steel comp 302 or steel comp 347 or steel comp 321 or steel comp 317 or steel comp 316 or steel comp 310 or steel comp 309 or steel comp 305 or steel comp 304

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-s-763 federal specification all material responses
Nondefinitive Specification/std Data: 2 type and a condition
Nut Height: Between 0.073 inches and 0.083 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
