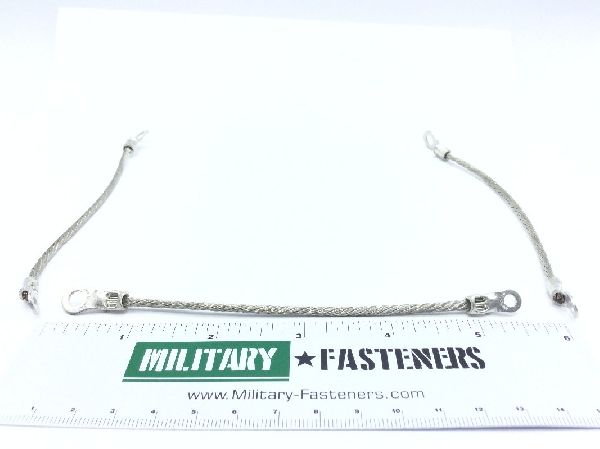

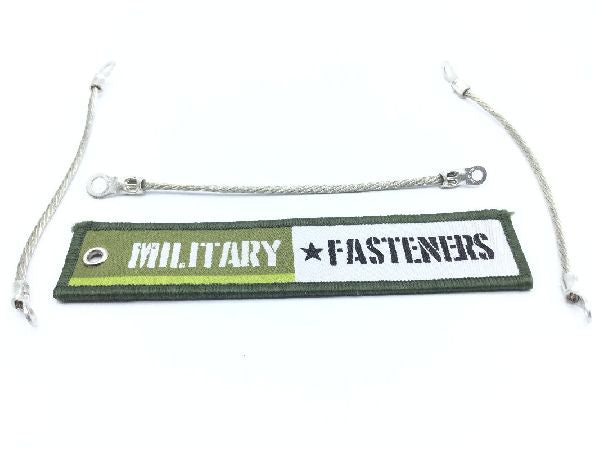

MS25083-2AB5 Electrical Lead

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $3.12

Units per Pack 20

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Material

Copper alloy core conductor single conductor

Conductor Form: Stranded single conductor
Cross Section Outside Diameter: 0.081 inches
Cross Sectional Shape: Round
Leadlength: 5.39 inches
Round Conductor Size: 12 awg single conductor
Strand Awg Size Per Conductor: 37 single conductor
Strand Quantity Per Conductor: 7 single conductor
Terminal Commercial And Government Entity Code: 96906 both ends single conductor
Terminal Lug Aperture Size: 0.193 inches 2nd end single conductor
Termination Type: Lug terminal with mounting hole both ends single conductor
