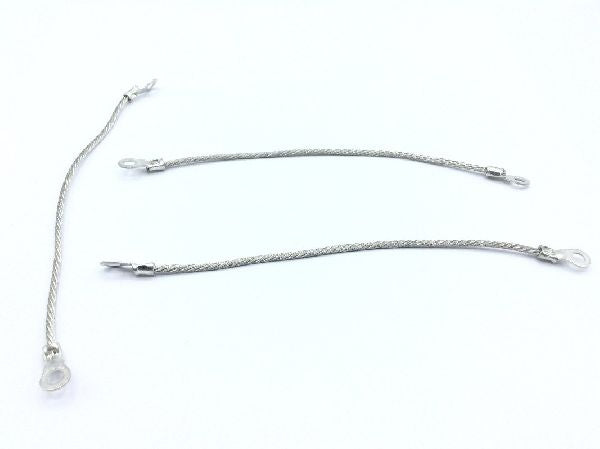

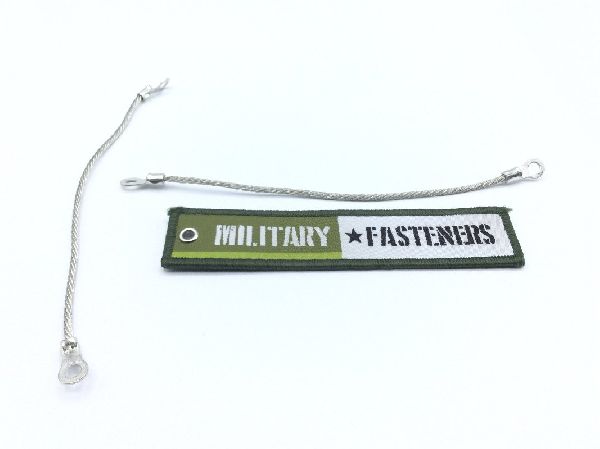

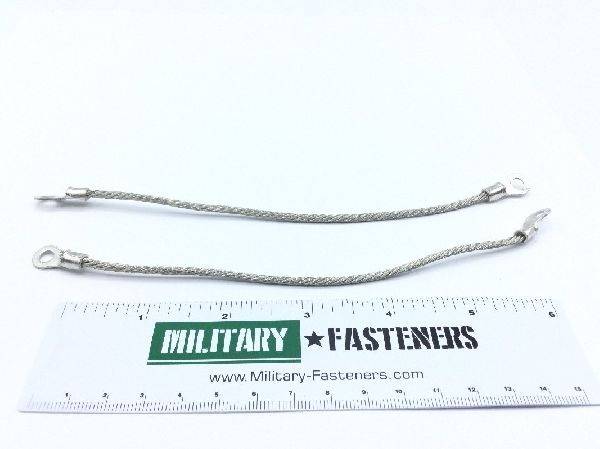

MS25083-2BB7 Electrical Lead

Product Series: MS
ECCN: EAR99

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy core conductor single conductor

Conductor Form: Stranded single conductor
Cross Section Outside Diameter: 0.081 inches
Cross Sectional Shape: Round
Leadlength: 7.300 inches
Round Conductor Size: 12 awg single conductor
Strand Awg Size Per Conductor: 37 single conductor
Strand Quantity Per Conductor: 7 single conductor
Terminal Commercial And Government Entity Code: 96906 both ends single conductor
Terminal Lug Aperture Size: 0.193 inches 2nd end single conductor
Terminal Manufacturer Identifying Reference Number: Ms25036-112 both ends single conductor
Termination Type: Lug terminal w/mounting hole both ends single conductor
