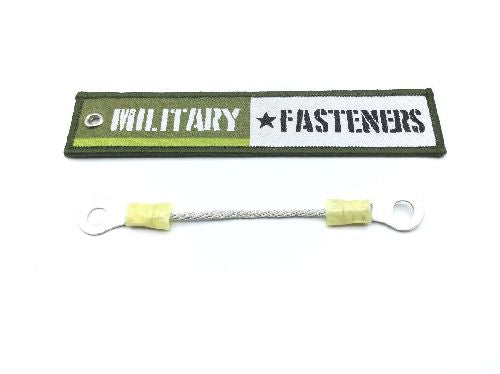

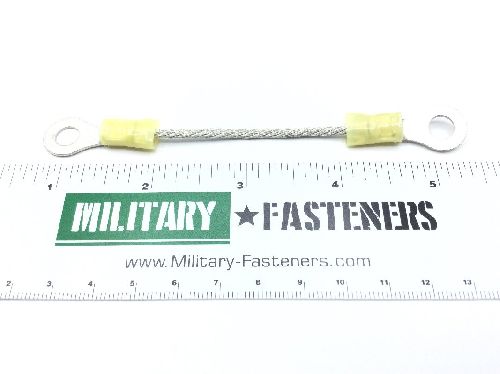

MS25083-2CC4 Electrical Lead

Product Series: MS
ECCN: EAR99

Price per Unit $8.32

Units per Pack 5

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Material

Copper alloy core conductor single conductor

Conductor Form: Stranded single conductor
Cross Section Outside Diameter: 0.081 inches
Cross Sectional Shape: Round
Lead Pull Strength: 110.0 pounds
Leadlength: 4.516 inches
Round Conductor Size: 12 awg single conductor
Strand Awg Size Per Conductor: 37 single conductor
Strand Quantity Per Conductor: 7 single conductor
Terminal Commercial And Government Entity Code: 96906 both ends single conductor
Terminal Lug Aperture Size: 0.260 inches 2nd end single conductor
Terminal Manufacturer Identifying Reference Number: Ms25036-157 both ends single conductor
Termination Type: Lug terminal w/mounting hole both ends single conductor
