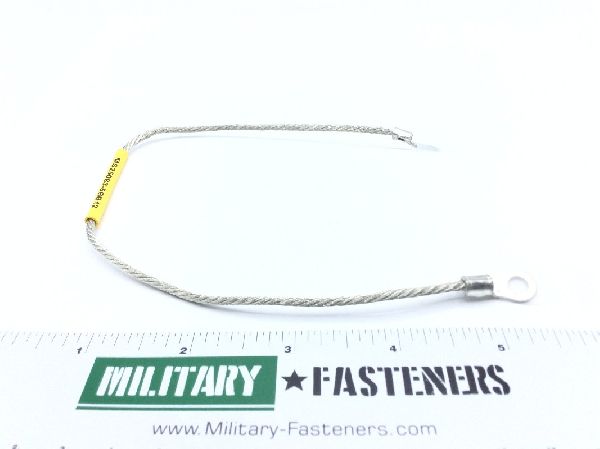

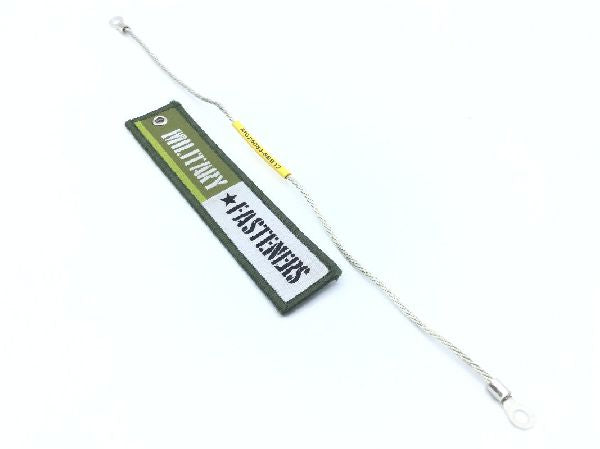

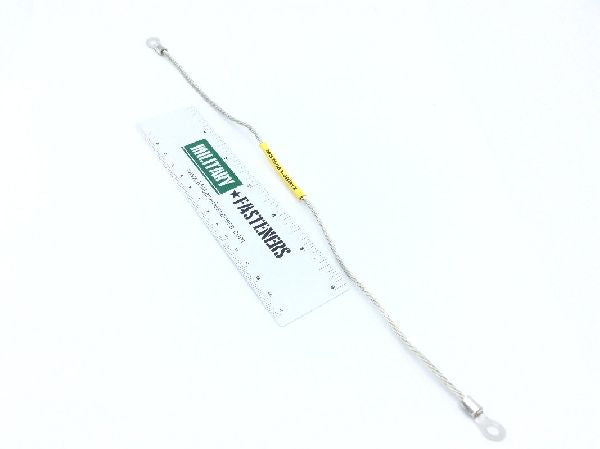

MS25083-5BB12 Electrical Lead

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Copper core conductor all conductors

Conductor Arrangement And Quantity: 5 singles
Conductor Form: Stranded all conductors
Conductor Quantity: 5
Cross Sectional Shape: Round
Round Conductor Size: 12 awg all conductors
Special Features: heat shrinkable; tensile strength of assembly-110 pounds yellow identification band of polyolefin-class 1
Strand Awg Size Per Conductor: 36 all conductors
Strand Quantity Per Conductor: 37 all conductors
Terminal Lug Aperture Size: 0.196 inches both ends all conductors
Termination Type: Lug terminal w/mounting hole both ends all conductors
