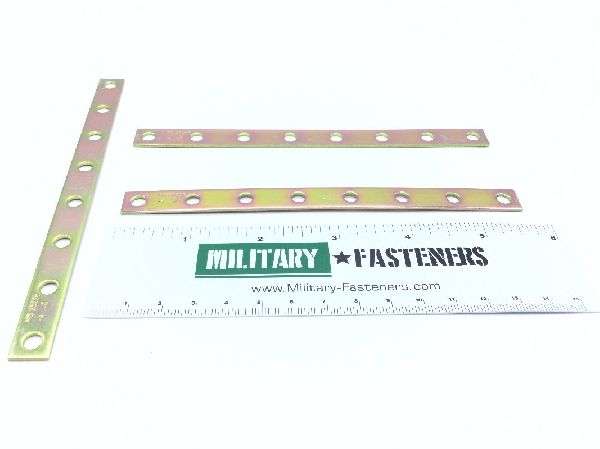

MS25226-4-8 Conductor Bus

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper

Overall Length

5.688 inches

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Body Cross-sectional Shape: Rectangular with edge radius
Construction: Solid
Cross-sectional Height: 0.032 inches
Cross-sectional Width: 0.438 inches
Material Specification: Qq-c-502 federal specification single material response or qq-c-576 federal specification single material response
Mounting Configuration: Eight 0.201 in. diameter holes 0.75 in. c to c
