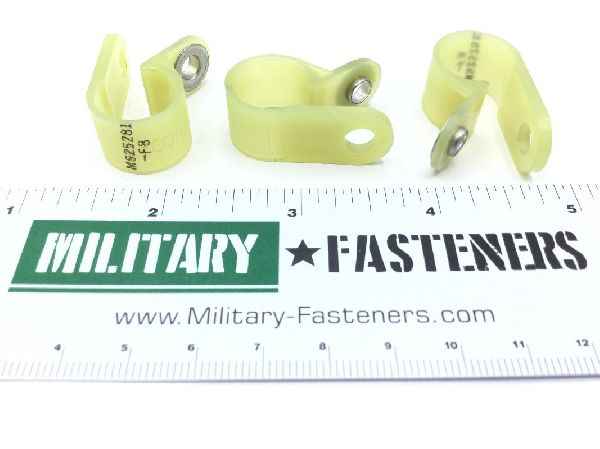

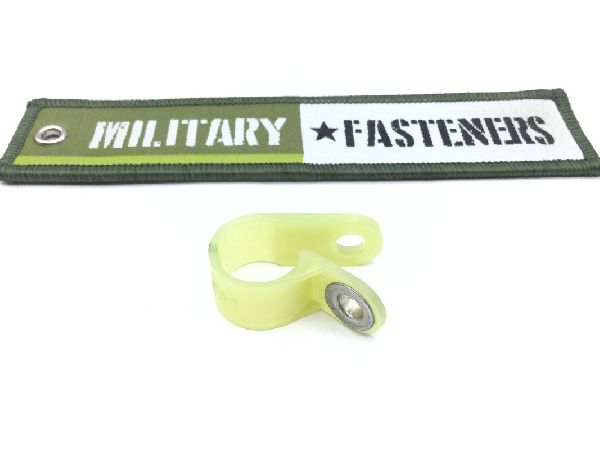

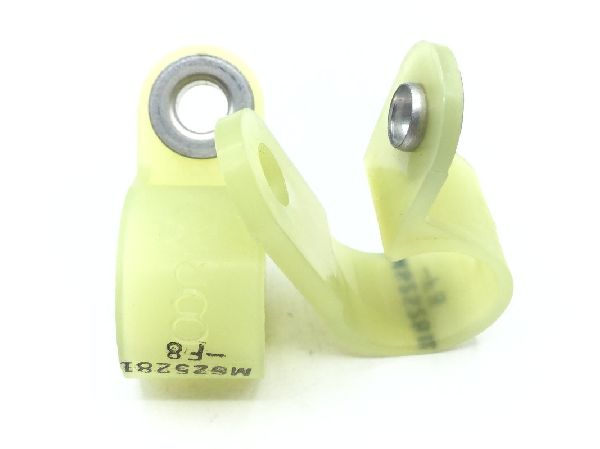

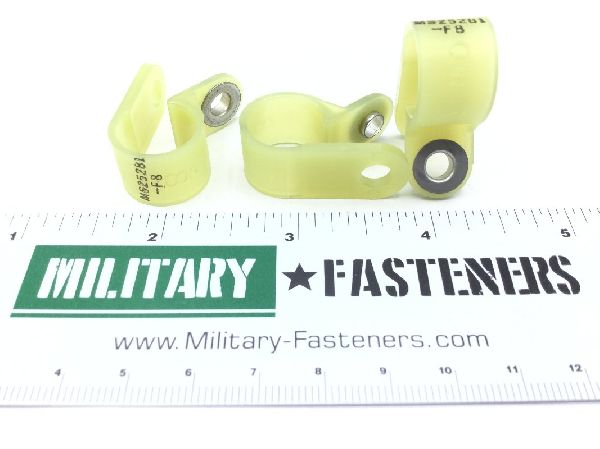

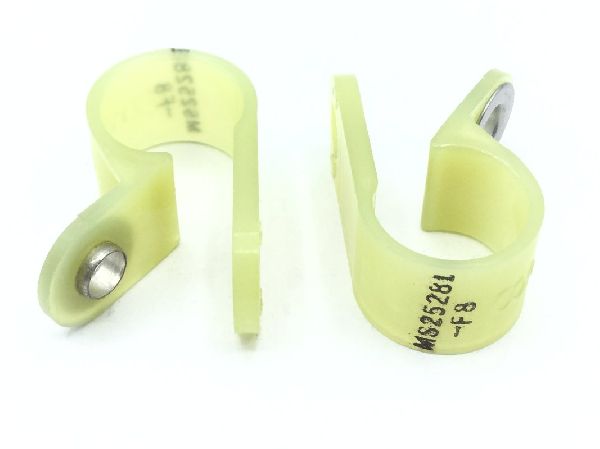

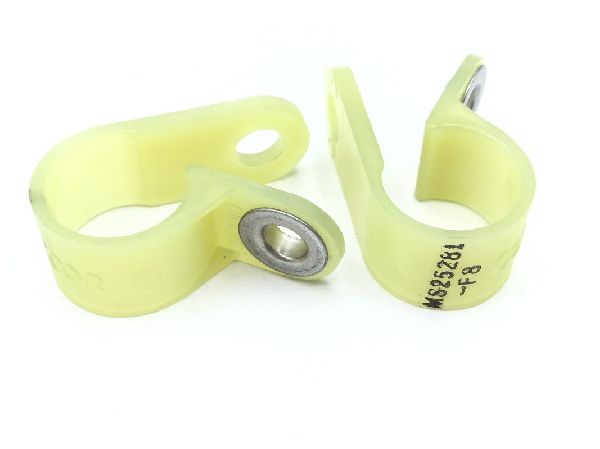

MS25281-F8 Loop Clamp

Product Series
MS
ECCN
9A991
Schedule
7616.10.9090
Price per Unit $5.20
Units per Pack 10
Price per Pack $52.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $52.00
Add item to quote
Material
Plastic polyhexamethylene amide band
Center To Center Distance Between Loop And Mounting Hole
0.639 inches
Distance From Loop Center To Tongue End
Between 0.879 inches and 0.899 inches
Loop Inside Diameter
Between 0.480 inches and 0.520 inches
Material Specification
Mil-m-20693 comp a type 1 military specification single material response band
Material Thickness
Between 0.085 inches and 0.100 inches
Overall Width
Between 0.495 inches and 0.510 inches
Special Features
Color natural
Style Designator
Single loop
Tongue Hole Type
unthreaded round
Diameter
Between 0.198 inches and 0.213 inches
