Home » MS25281R14 Loop Clamp

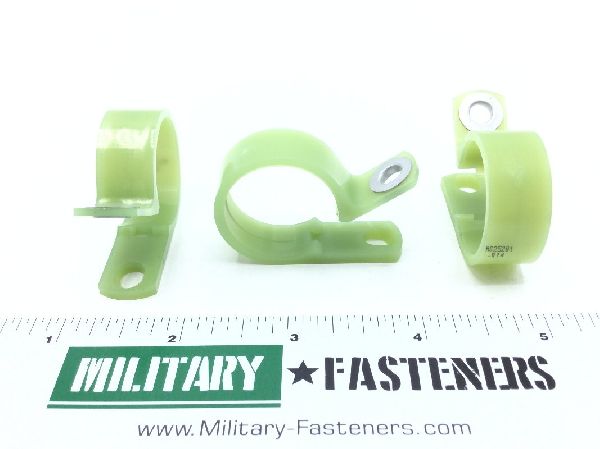

MS25281R14 Loop Clamp

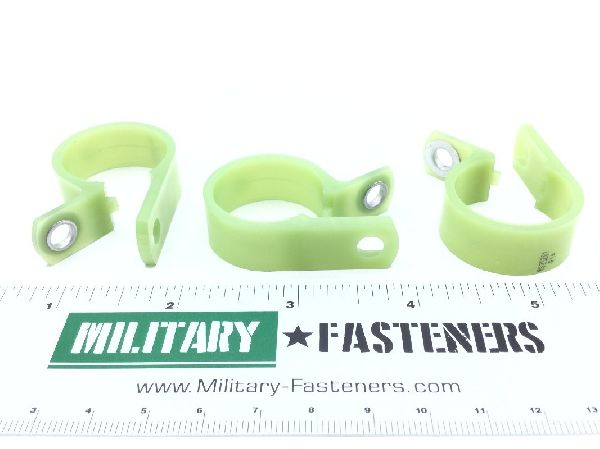

MS25281R14 Loop Clamp (2)

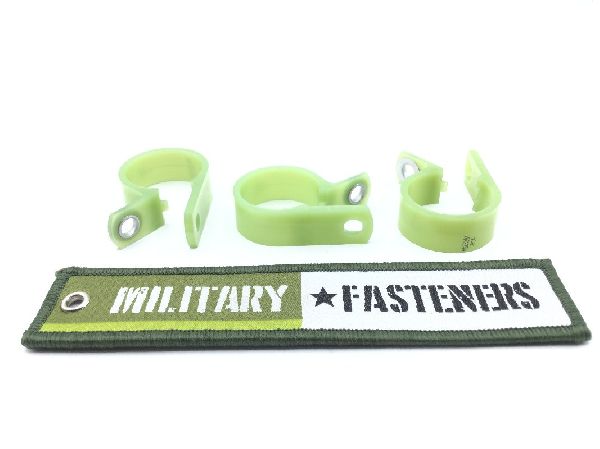

MS25281R14 Loop Clamp (3)

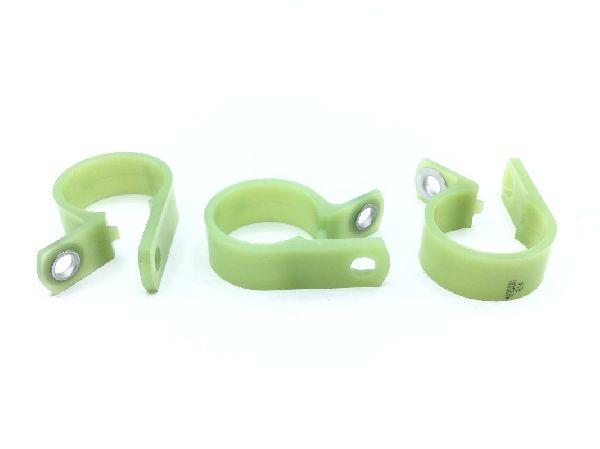

MS25281R14 Loop Clamp (4)

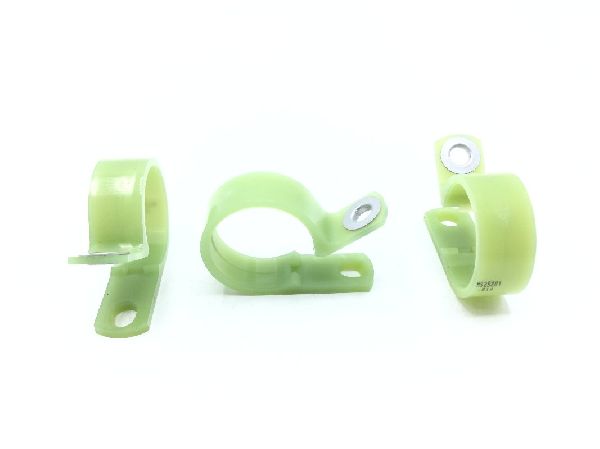

MS25281R14 Loop Clamp (5)

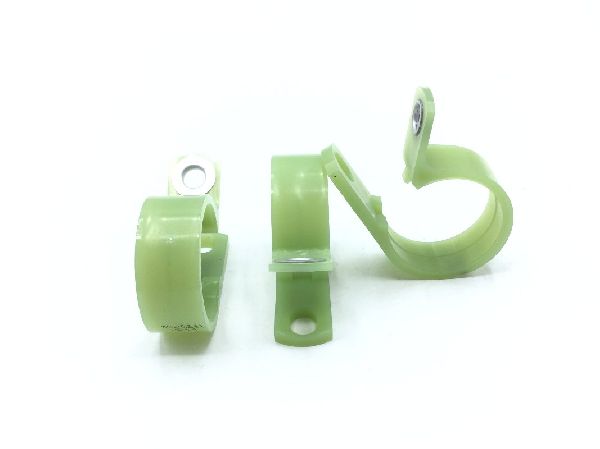

MS25281R14 Loop Clamp (6)
MS25281R14 Loop Clamp
MS25281R14 Loop Clamp (2)
MS25281R14 Loop Clamp (3)
MS25281R14 Loop Clamp (4)
MS25281R14 Loop Clamp (5)
MS25281R14 Loop Clamp (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS25281R14 Loop Clamp

Product Series
MS
ECCN
EAR99
Schedule
8539.29.2500
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Plastic polyhexamethylene amide
Center To Center Distance Between Loop And Mounting Hole
Between 0.853 inches and 0.903 inches
Departure From Cited Designator
As mod by material which must conform to ships parts control center special quality control provisions
Distance From Loop Center To Tongue End
Between 1.093 inches and 1.233 inches
Loop Inside Diameter
Between 0.855 inches and 0.895 inches
Material Specification
Astm d4066 assn standard single material response
Material Thickness
Between 0.050 inches and 0.085 inches
Overall Width
Between 0.495 inches and 0.610 inches
Special Test Features
Special quality control testing
Style Designator
Single loop
Test Data Document
Etc.).
Tongue Hole Type
unthreaded round
Diameter
Between 0.198 inches and 0.213 inches
