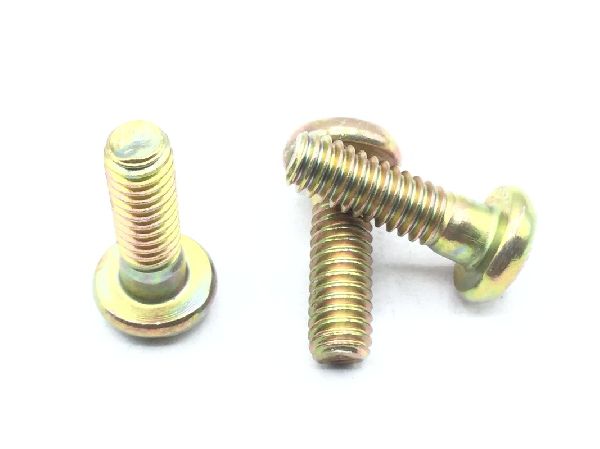

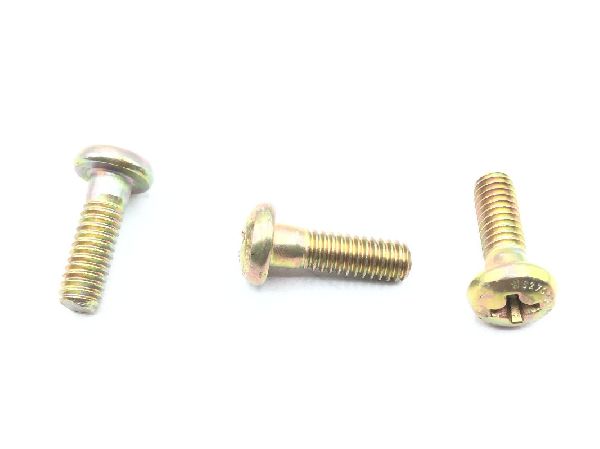

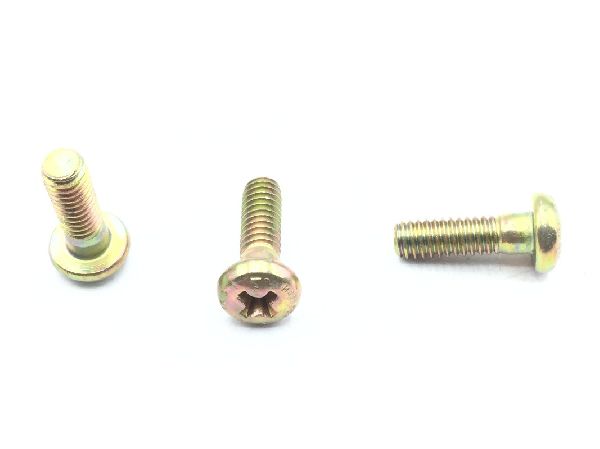

MS27039-0808 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.36

Units per Pack 100

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Head Style

Pan

Material

Steel

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 0.516 inches and 0.563 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.345 inches and 0.484 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
