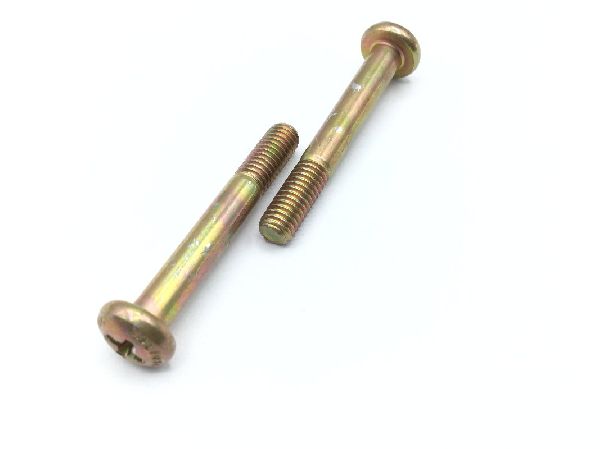

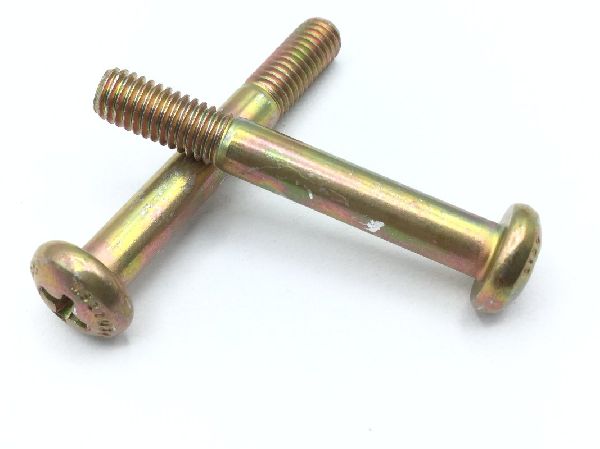

MS27039-1-21 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.40

Units per Pack 100

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.329 inches and 1.376 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Diameter: 0.19 inches
Thread Direction: Right-hand
Thread Length: Between 0.377 inches and 0.516 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
