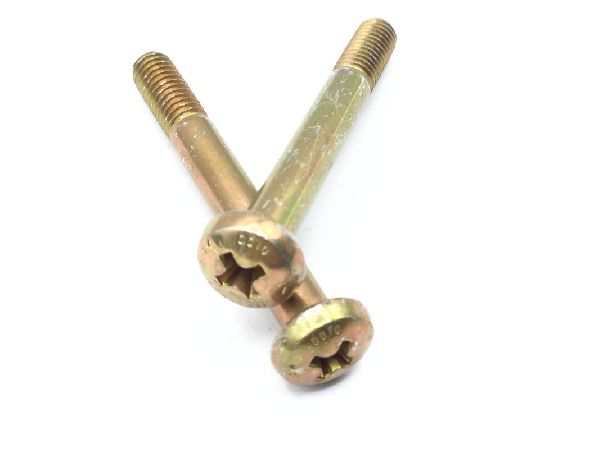

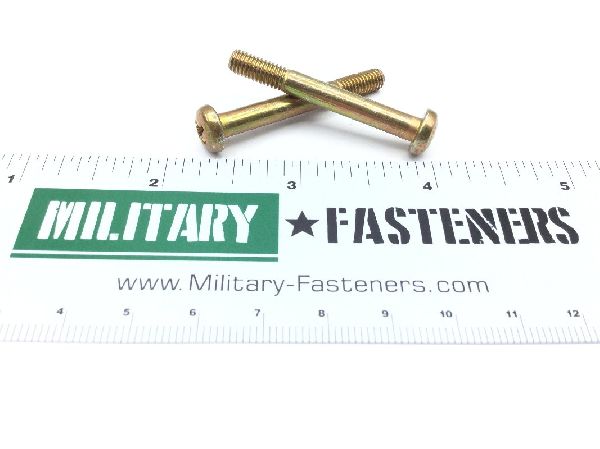

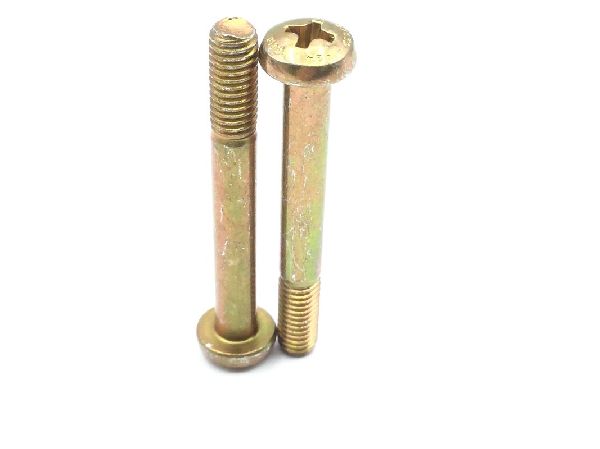

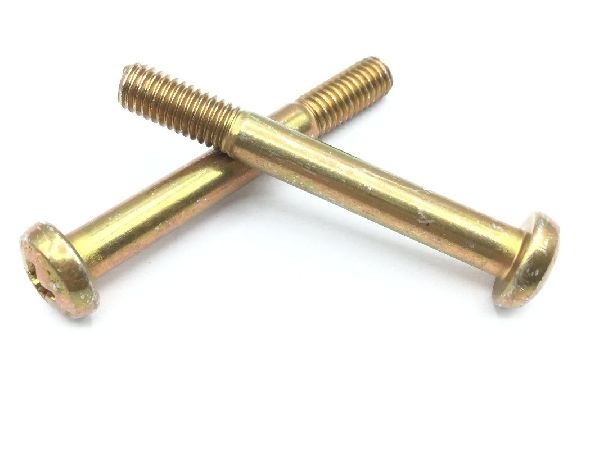

MS27039-1-24 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 1.516 inches and 1.563 inches
- Hardness Rating
- Between 26.0 rockwell c and 32.0 rockwell c
- Head Height
- Between 0.122 inches and 0.133 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 8630 or steel comp 4037
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 3 federal specification all treatment responses
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.377 inches and 0.516 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.357 inches and 0.373 inches
