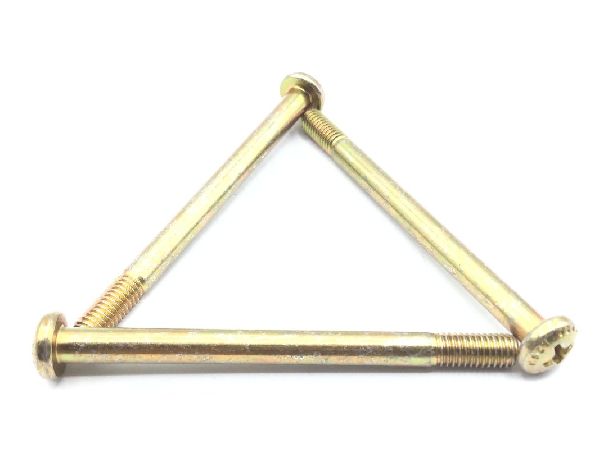

MS27039-1-38 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.81

Units per Pack 20

Price per Pack $36.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $36.20

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 2.391 inches and 2.438 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.376 inches and 0.515 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
