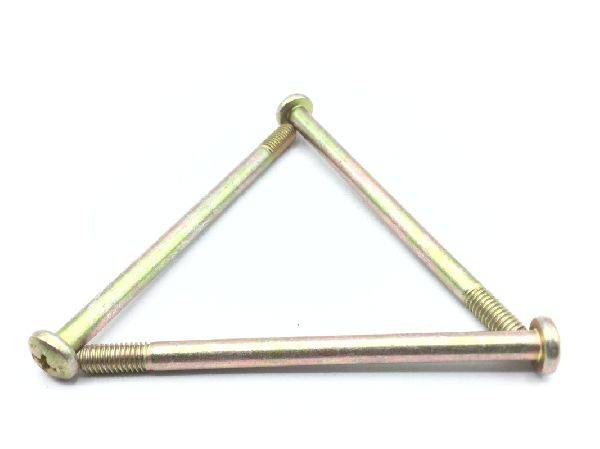

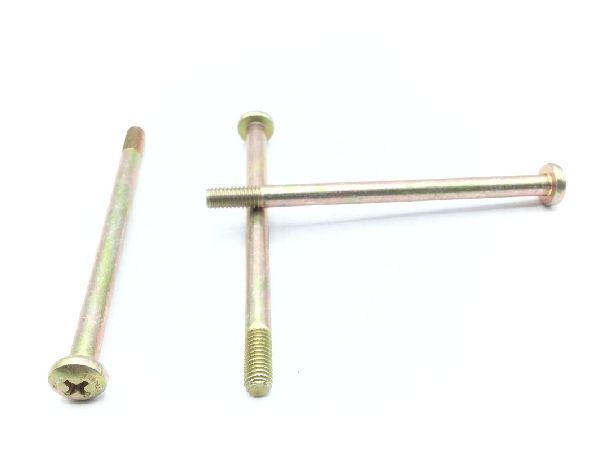

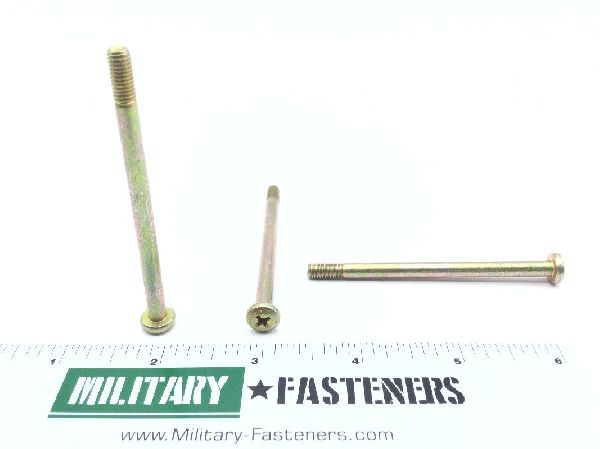

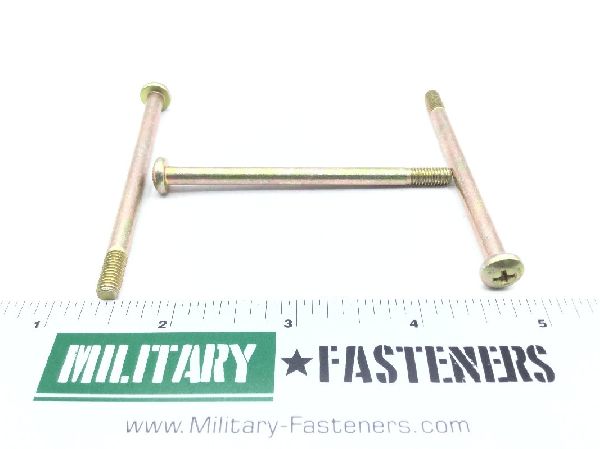

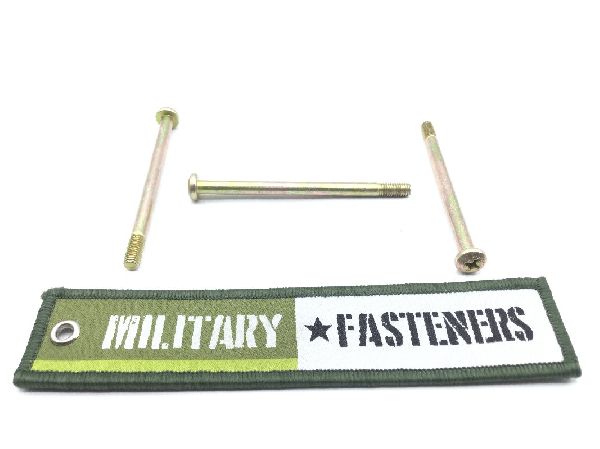

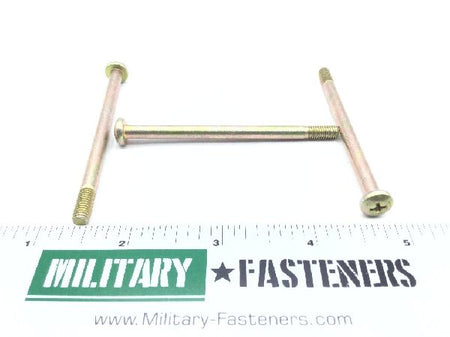

MS27039-1-45 Machine Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Price per Unit $2.29
Units per Pack 20
Price per Pack $45.80
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $45.80
Add item to quote
Head Style
Pan no. 2
Thread Class
3a
Fastener Length
Between 2.829 inches and 2.876 inches
Hardness Rating
Between 26.0 rockwell c and 32.0 rockwell c
Head Height
Between 0.122 inches and 0.133 inches
Internal Drive Style
Cross recess type 1
Material Specification
Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Min. Tensile Strength (psi)
125000 pounds per square inch
Screw Material
Steel comp
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.407 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.357 inches and 0.373 inches
