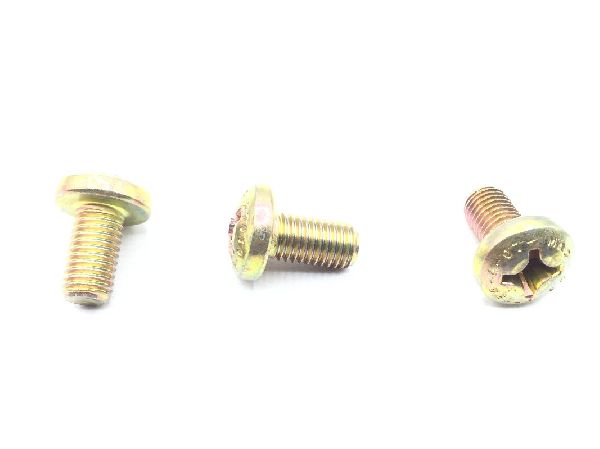

MS27039-4-07 Machine Screw

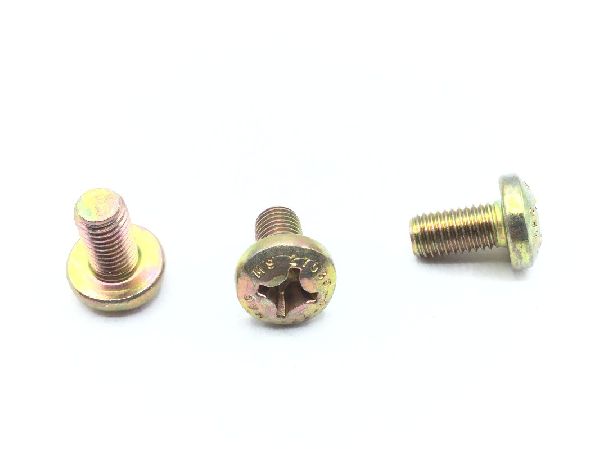

MS27039-4-07 Machine Screw (2)

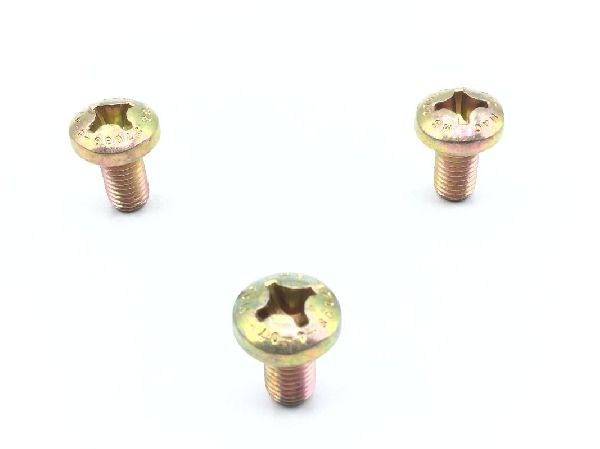

MS27039-4-07 Machine Screw (3)
MS27039-4-07 Machine Screw
MS27039-4-07 Machine Screw (2)
MS27039-4-07 Machine Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS27039-4-07 Machine Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.56
Units per Pack 100
Price per Pack $56.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $56.00
Add item to quote
Head Style
Pan
Thread Class
3a
Fastener Length
0.469 inches
Head Height
Between 0.162 inches and 0.175 inches
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
125000 pounds per square inch
Screw Material
Steel
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
0.469 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.473 inches and 0.492 inches
