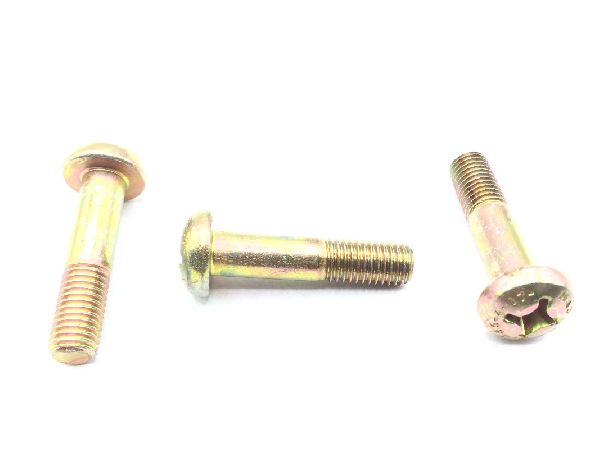

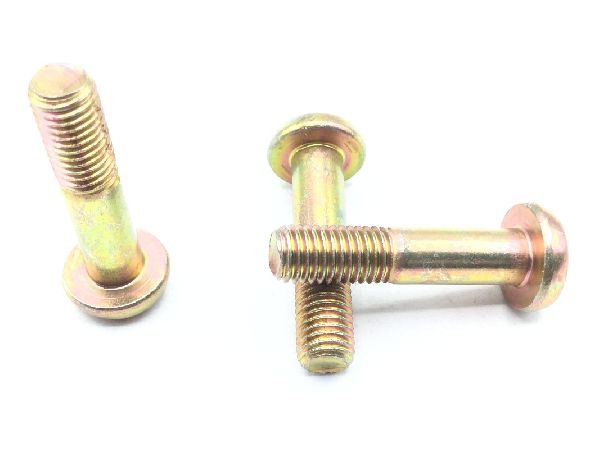

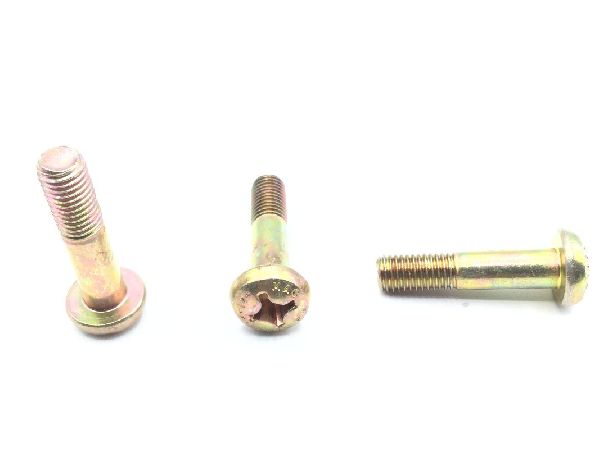

MS27039-4-17 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.079 inches and 1.126 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.162 inches and 0.175 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification all treatment responses
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.501 inches and 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.473 inches and 0.492 inches
