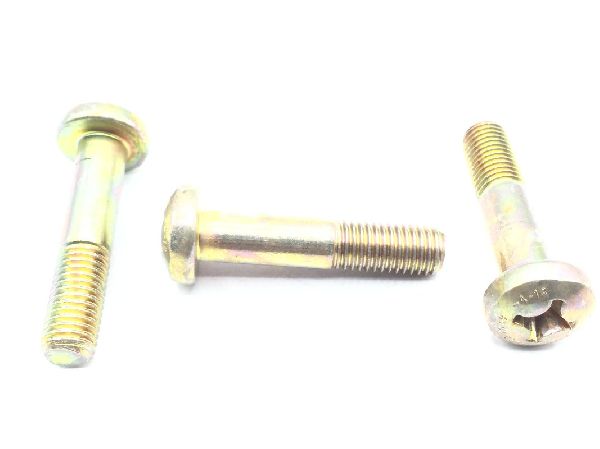

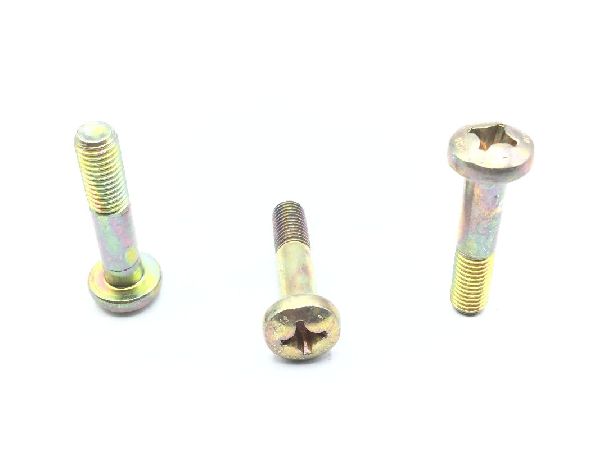

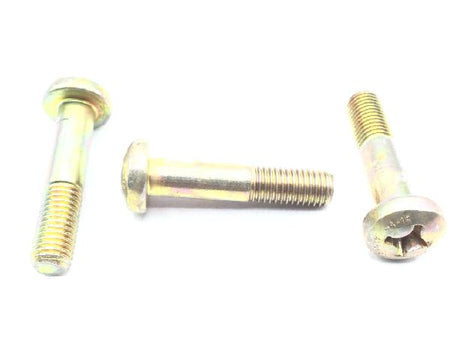

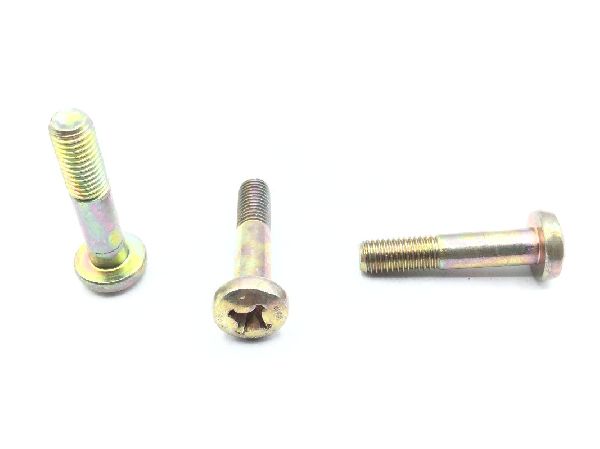

MS27039-4-18 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.48

Units per Pack 100

Price per Pack $48.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $48.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.141 inches and 1.188 inches
Hardness Rating: Between 26 rockwell c and 32 rockwell c
Head Height: Between 0.162 inches and 0.175 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.25 inches
Thread Direction: Right-hand
Thread Length: Between 0.43 inches and 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.473 inches and 0.492 inches
