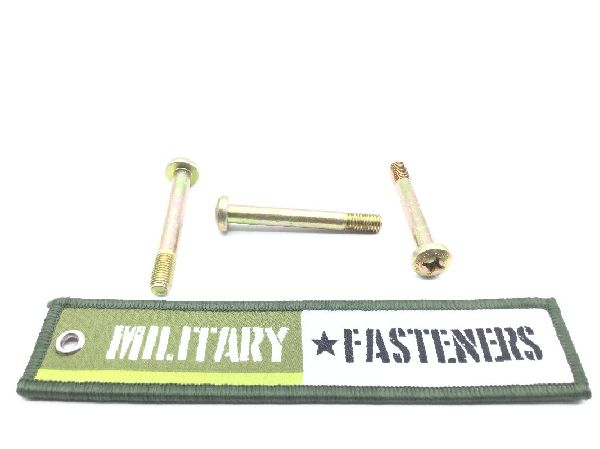

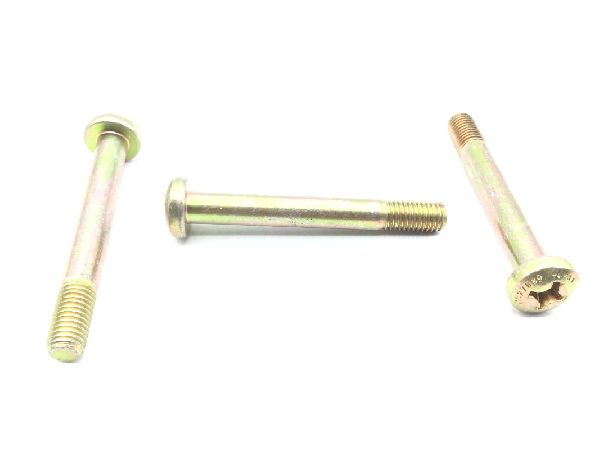

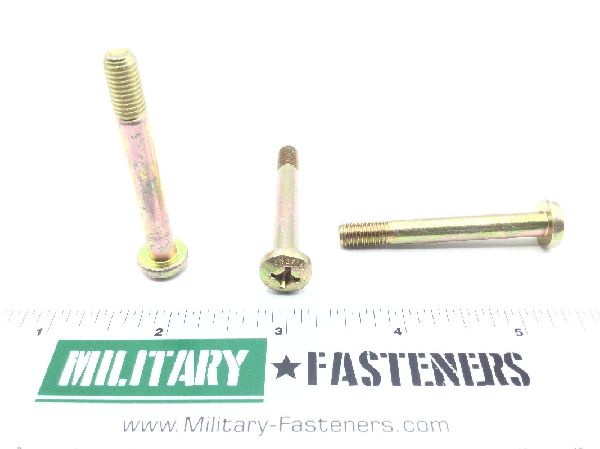

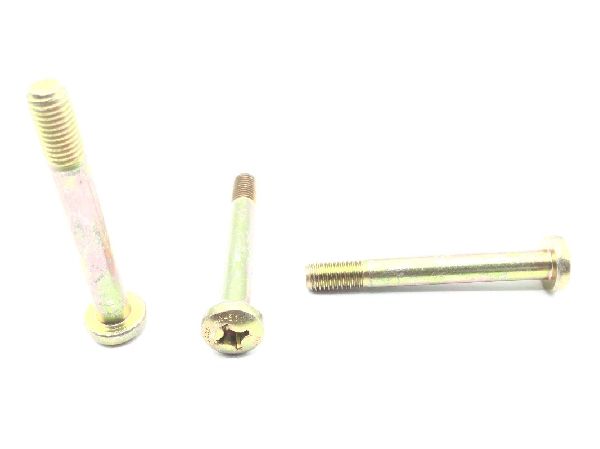

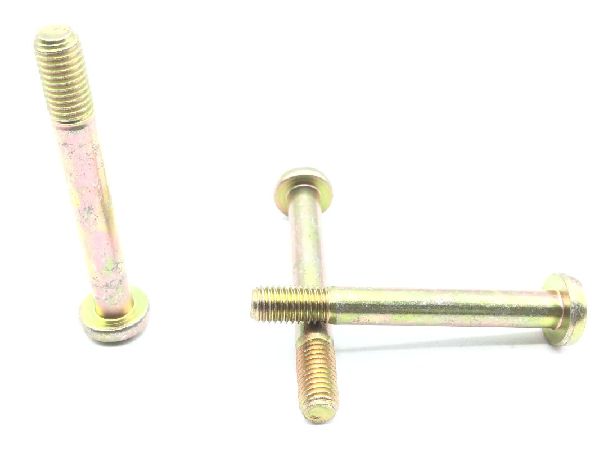

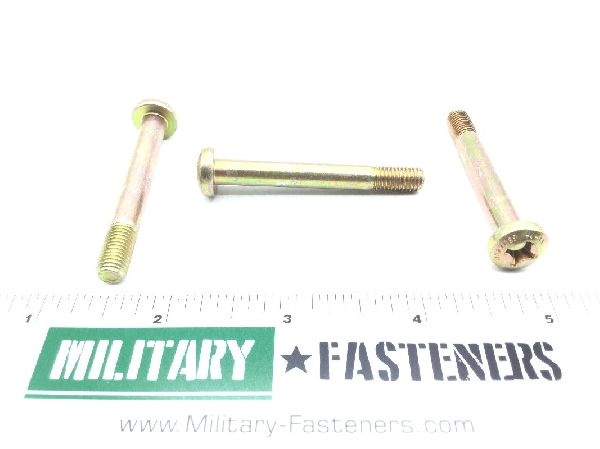

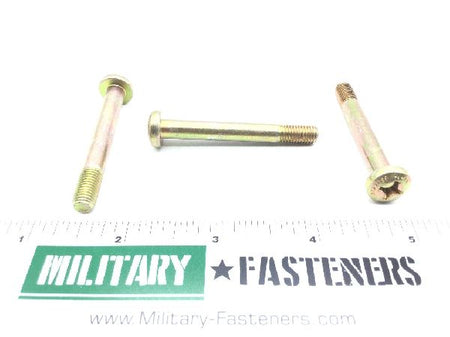

MS27039-4-31 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.15

Units per Pack 25

Price per Pack $53.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $53.75

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 1.969 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.162 inches and 0.175 inches
Internal Drive Style: Cross recess type ii
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 4037
Screw Material Specification: Mil-s-8695 military specification single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.531 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.473 inches and 0.492 inches
