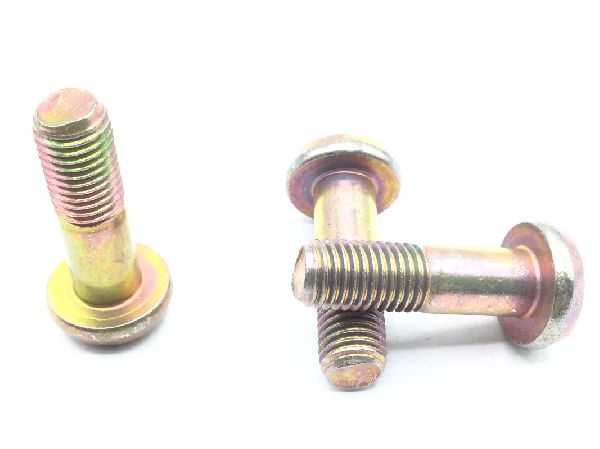

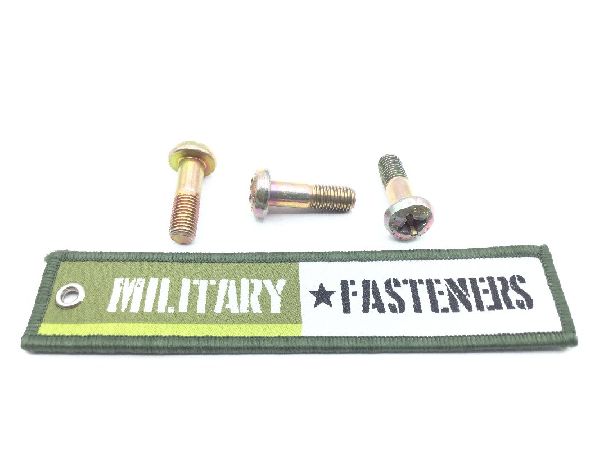

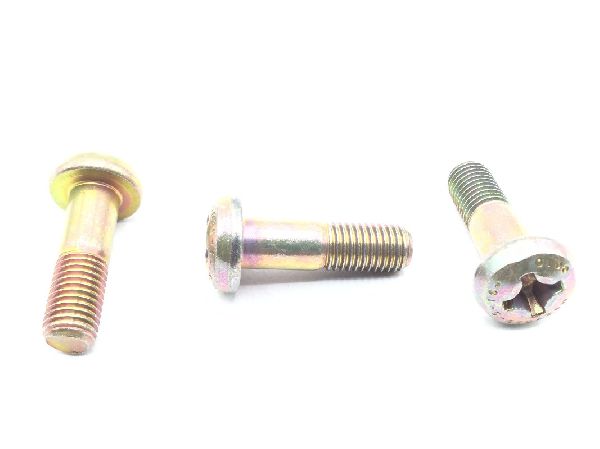

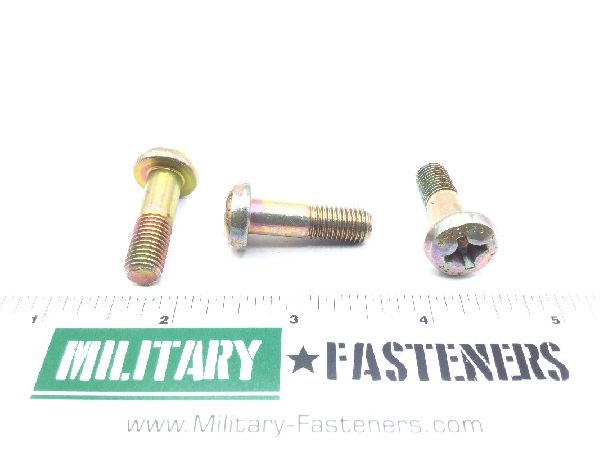

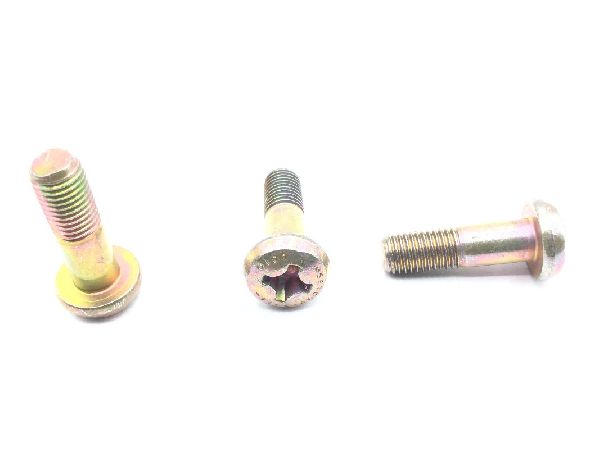

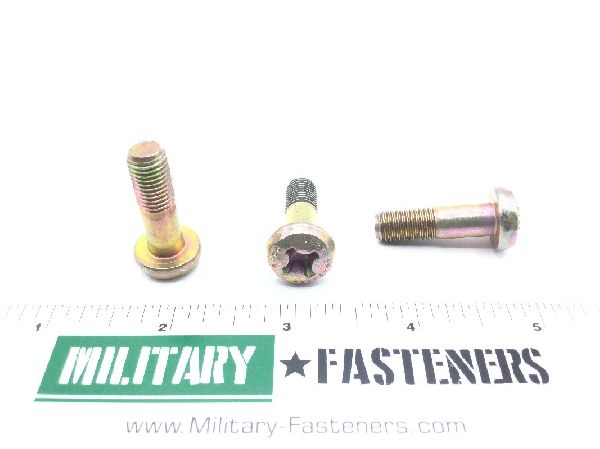

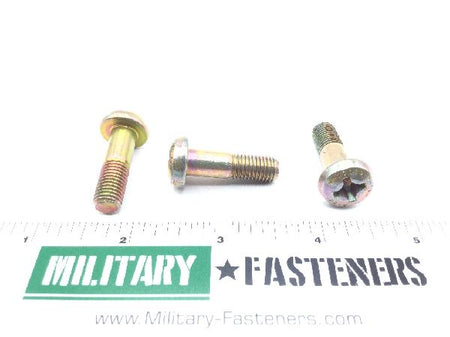

MS27039-5-16 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.14

Units per Pack 25

Price per Pack $53.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $53.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.032 inches and 1.079 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.218 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.548 inches and 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.594 inches and 0.615 inches
