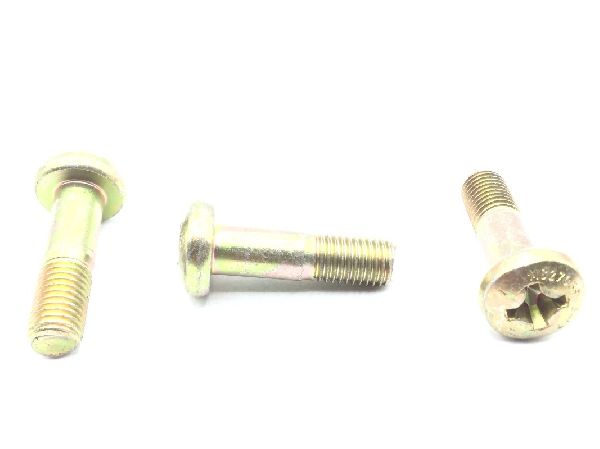

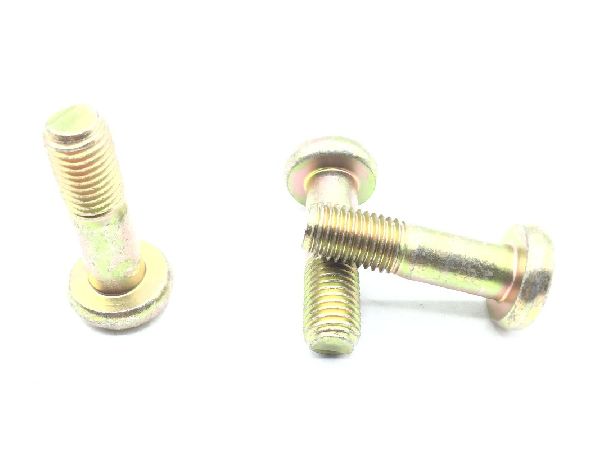

MS27039-5-17 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Fastener Length: Between 1.094 inches and 1.141 inches
Head Height: Between 0.203 inches and 0.218 inches
Internal Drive Style: Cross recess type 1
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.548 inches and 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.594 inches and 0.615 inches
