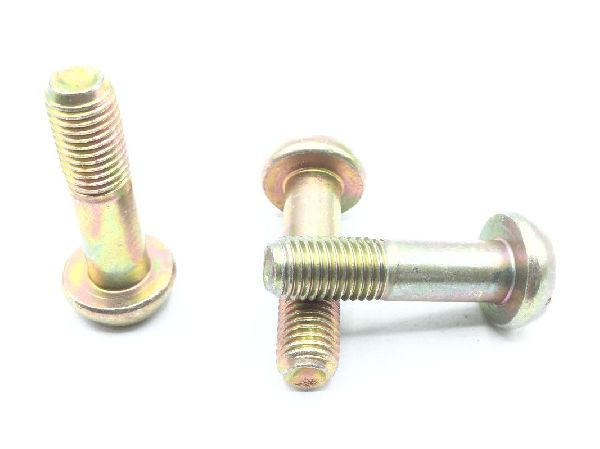

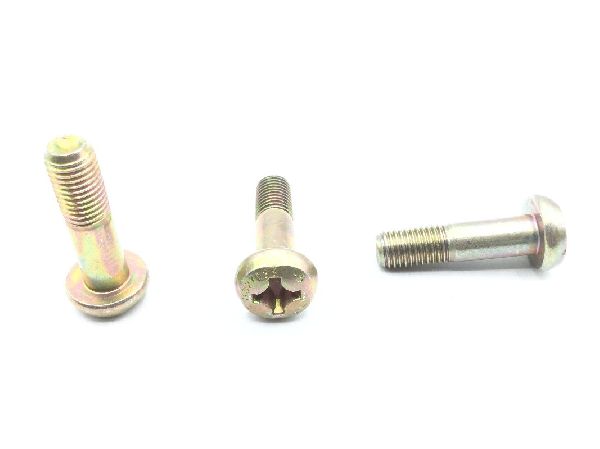

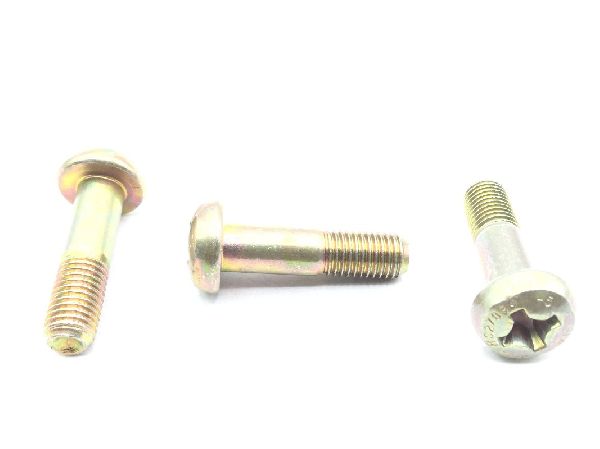

MS27039-5-18 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.157 inches and 1.204 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.203 inches and 0.218 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 4037 or steel comp 8630
Screw Material Specification: Ams6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl3 federal specification single treatment response ty2 qq-p-416
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.548 inches and 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.594 inches and 0.615 inches
