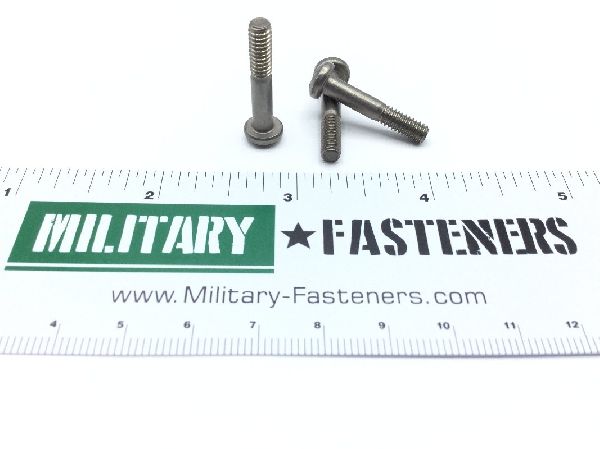

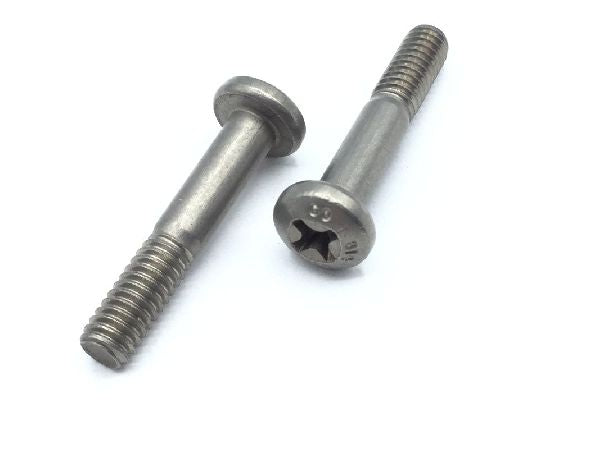

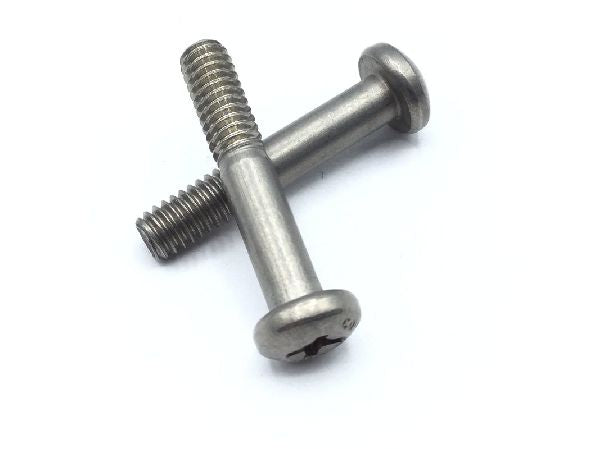

MS27039C0814 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.50

Units per Pack 25

Price per Pack $37.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $37.50

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.891 inches and 0.938 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5735 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.407 inches and 0.484 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.306 inches and 0.322 inches
