MS27039C1-04 Machine Screw

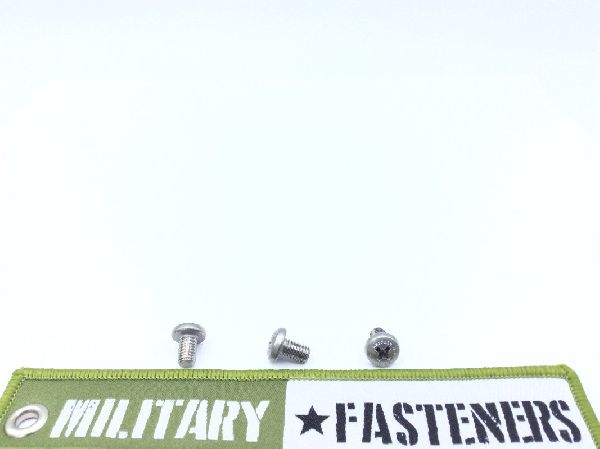

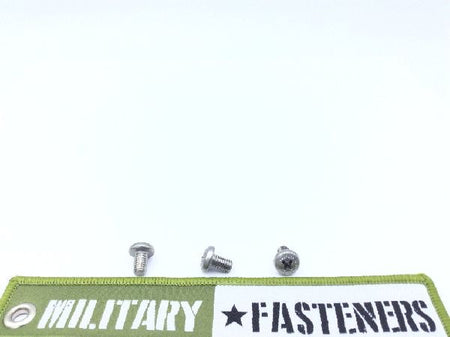

MS27039C1-04 Machine Screw (2)

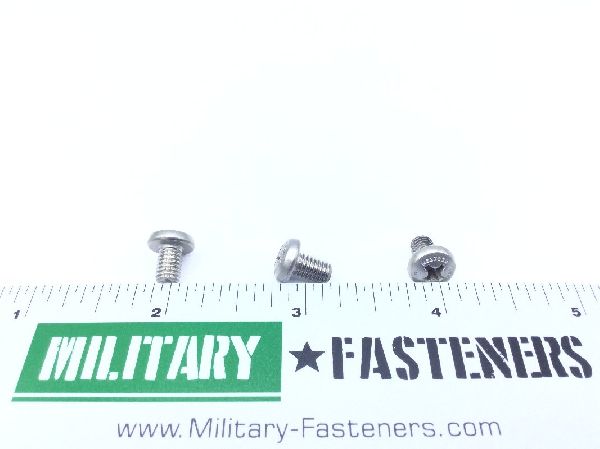

MS27039C1-04 Machine Screw (3)
MS27039C1-04 Machine Screw
MS27039C1-04 Machine Screw (2)
MS27039C1-04 Machine Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS27039C1-04 Machine Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $0.90
Units per Pack 50
Price per Pack $45.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:
Total Packs 1
Total Price $45.00
Add item to quote
Head Style
Pan no. 2
Thread Class
3a
Fastener Length
Between 0.266 inches and 0.313 inches
Head Height
Between 0.122 inches and 0.133 inches
Internal Drive Style
Cross recess type 1
Min. Tensile Strength (psi)
125000 pounds per square inch
Screw Material
Stainless steel alloy 660
Screw Surface Treatment
Passivate
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.234 inches and 0.281 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.357 inches and 0.373 inches
