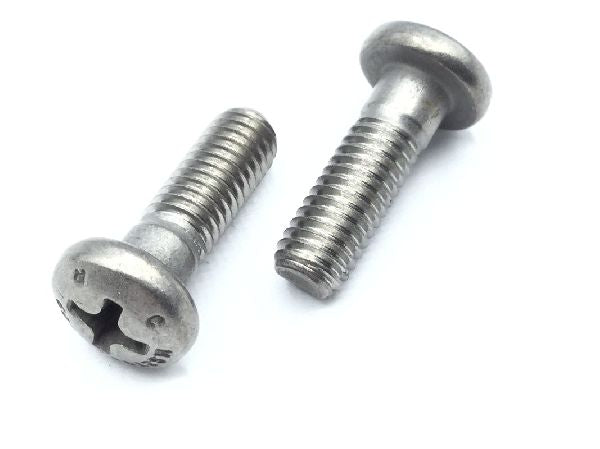

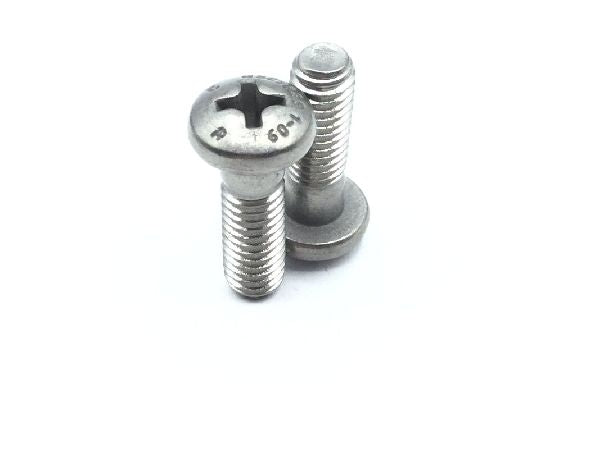

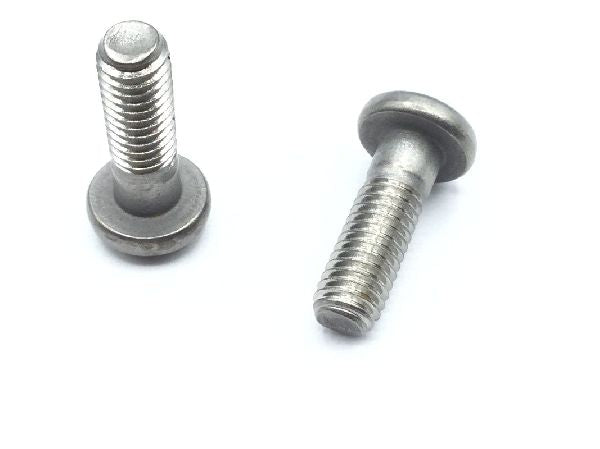

MS27039C1-09 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.47

Units per Pack 25

Price per Pack $36.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.75

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.579 inches and 0.626 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Stainless steel alloy 660
Screw Material Specification: Ams 5732 assn standard single material response or ams 5735 assn standard single material response
Screw Surface Treatment: Passivate
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.377 inches and 0.516 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
