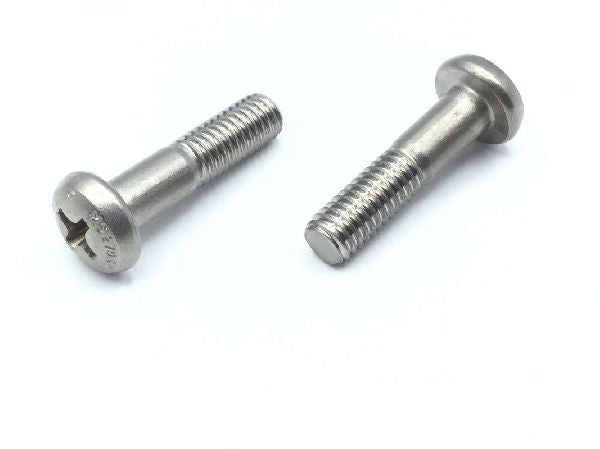

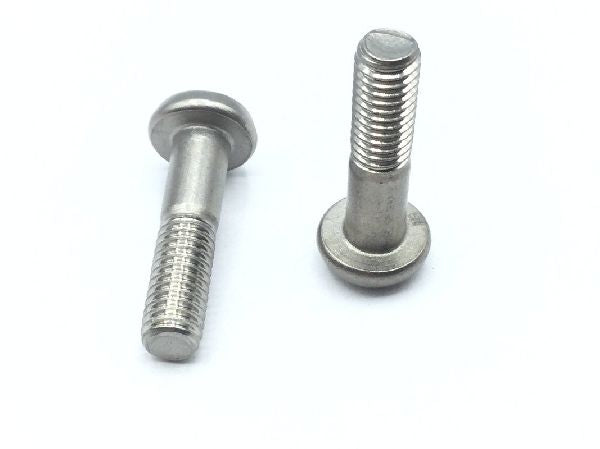

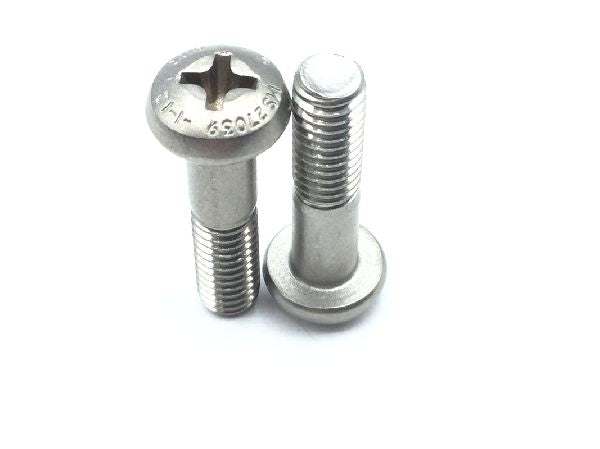

MS27039C1-12 Machine Screw
MS27039C1-12 Machine Screw (2)
MS27039C1-12 Machine Screw (3)
MS27039C1-12 Machine Screw
MS27039C1-12 Machine Screw (2)
MS27039C1-12 Machine Screw (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS27039C1-12 Machine Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan
Material
Stainless steel alloy 660
Thread Class
3a
Fastener Length
Between 0.766 inches and 0.813 inches
Head Height
Between 0.122 inches and 0.133 inches
Internal Drive Style
Cross recess type 1
Material Specification
Ams 5735 assn standard single material response
Min. Tensile Strength (psi)
125000 pounds per square inch
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
Between 0.377 inches and 0.516 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Head Diameter
Between 0.357 inches and 0.373 inches
