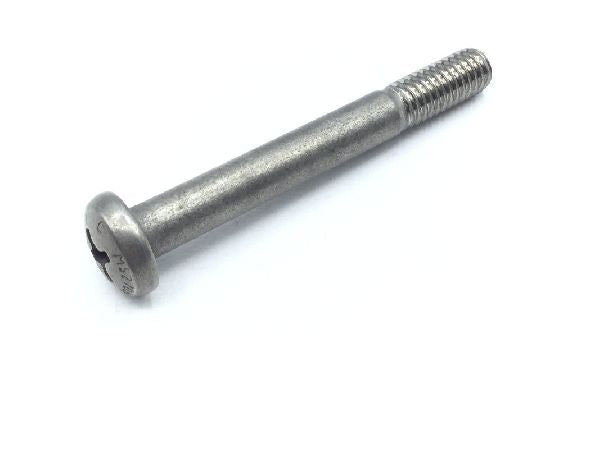

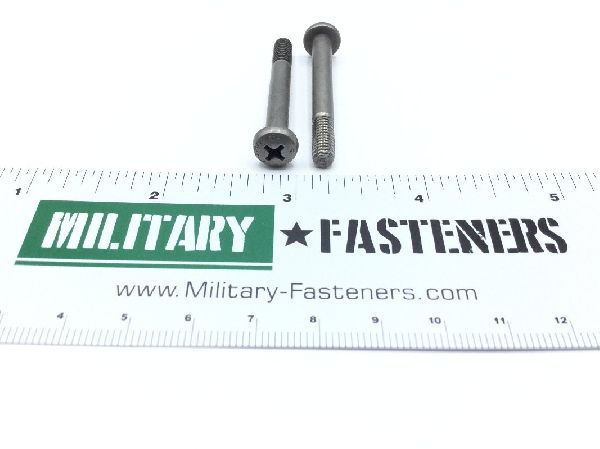

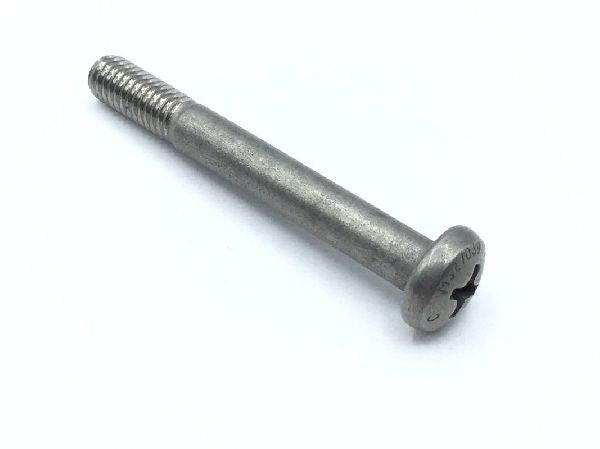

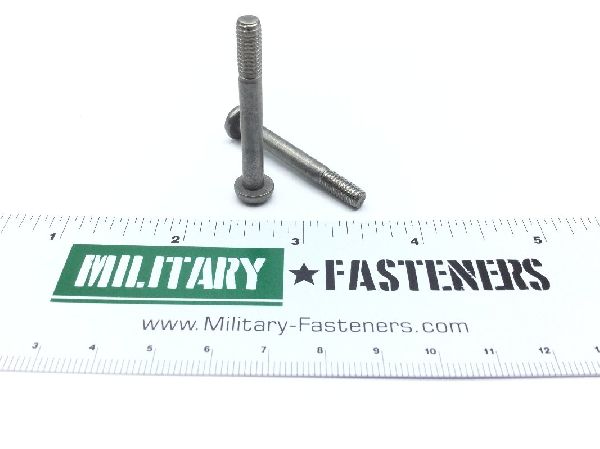

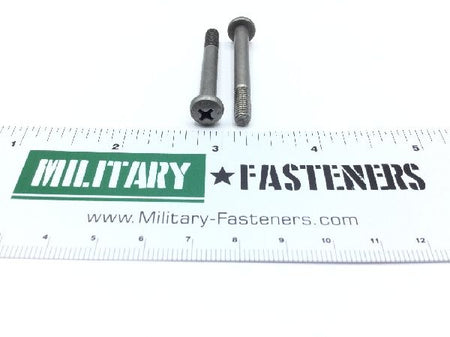

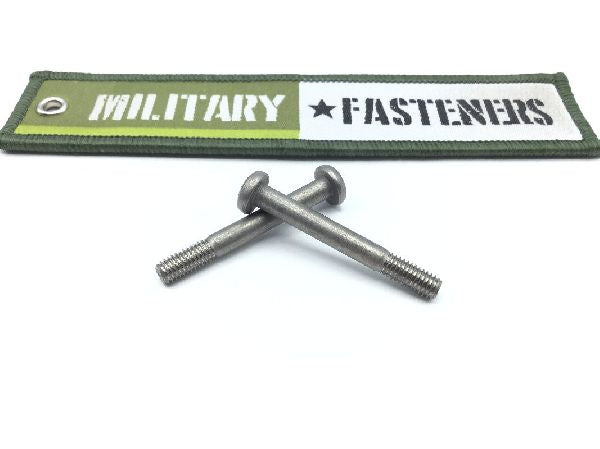

MS27039C1-24 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.516 inches and 1.563 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5732 assn standard single material response
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.439 inches and 0.516 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
