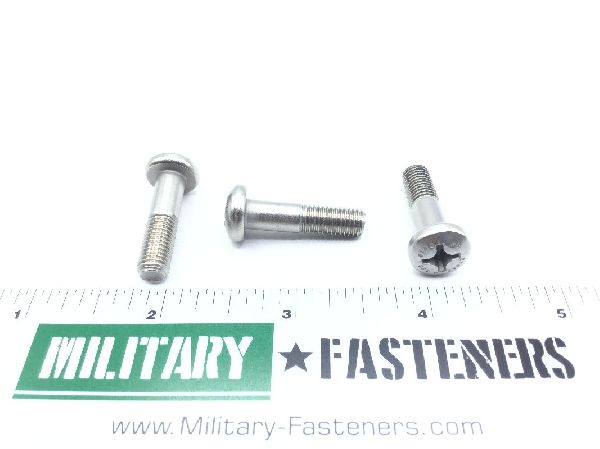

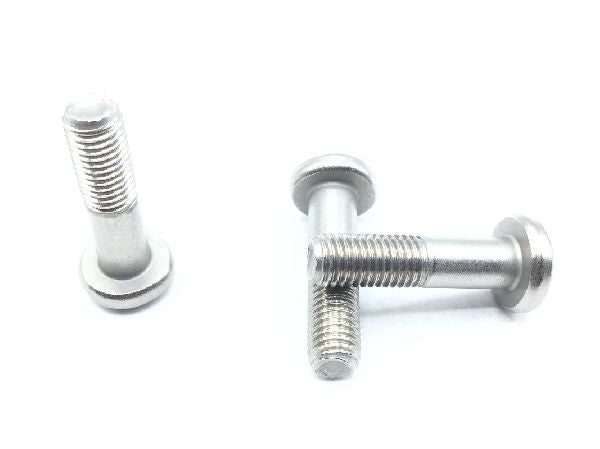

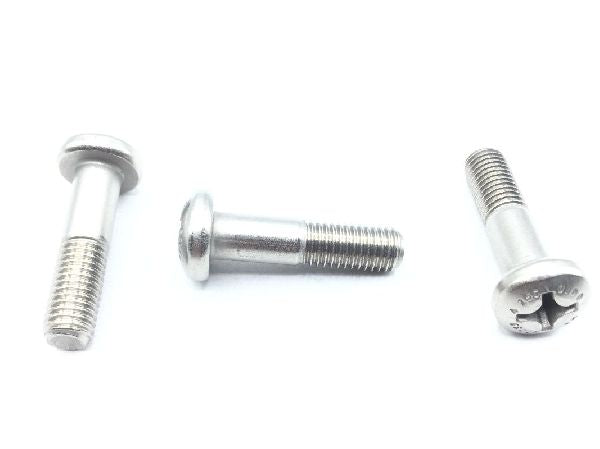

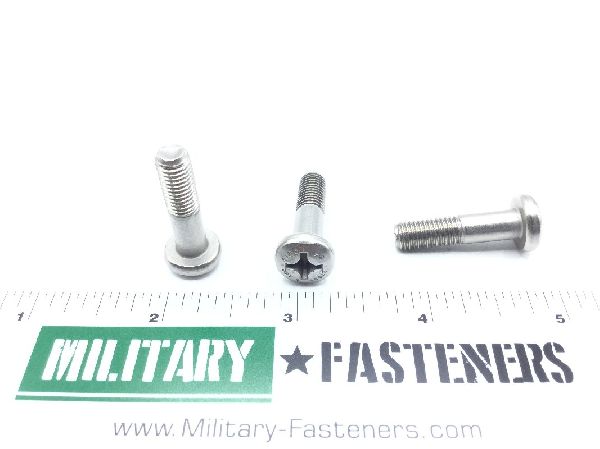

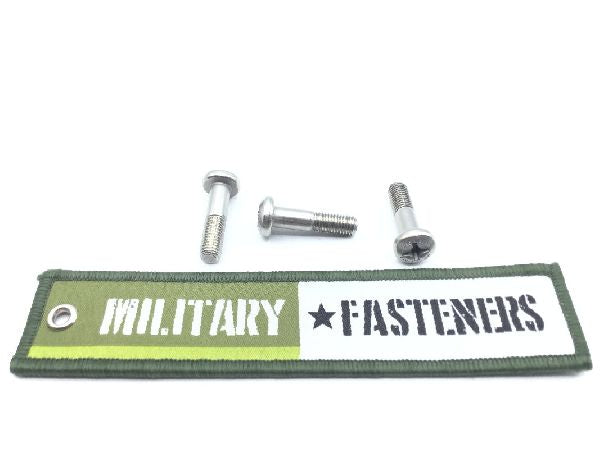

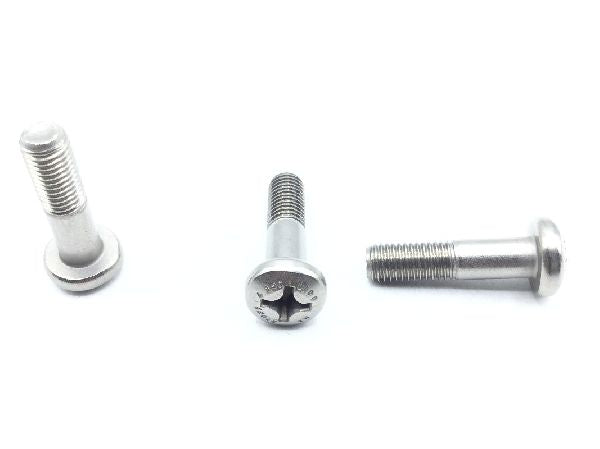

MS27039C4-15 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $5.51

Units per Pack 10

Price per Pack $55.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.10

Add item to quote

Head Style

Pan no. 2

Thread Class

Fastener Length: Between 0.953 inches and 1.001 inches
Head Height: Between 0.162 inches and 0.175 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Iron alloy 660
Screw Material Specification: Ams 5735 assn standard single material response
Screw Surface Treatment: Passivate
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.460 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.473 inches and 0.492 inches
