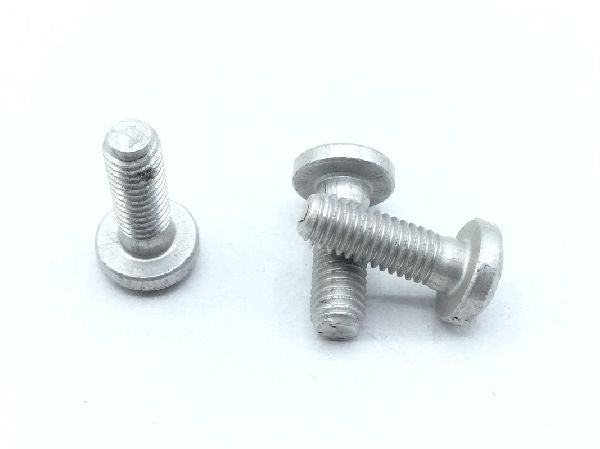

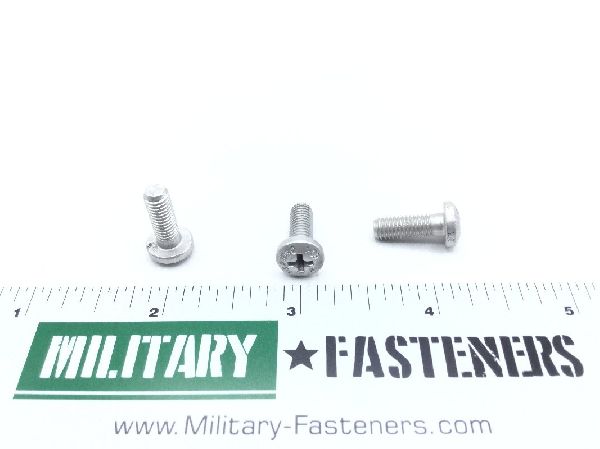

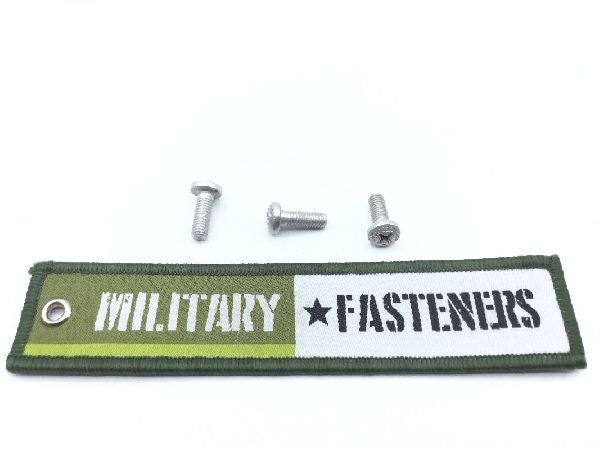

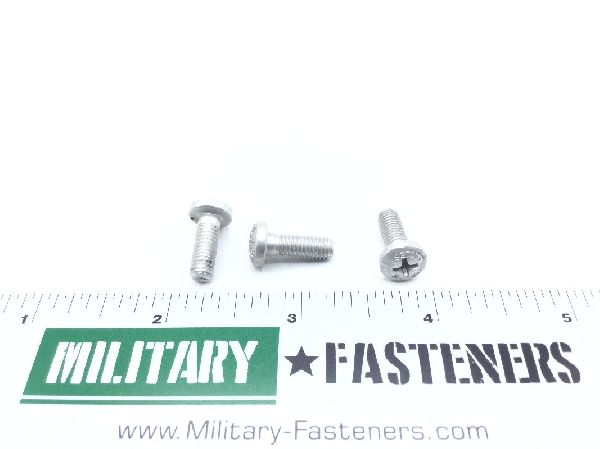

MS27039DD1-08 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.516 inches and 0.563 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 62000 pounds per square inch
Screw Material: Aluminum alloy 2024
Screw Material Specification: Qq-a-225/6 federal specification single material response or mil-w-7986 military specification single material response
Screw Surface Treatment: Anodize
Screw Surface Treatment Specification: Mil-a-8625 military specification single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.377 inches and 0.516 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
