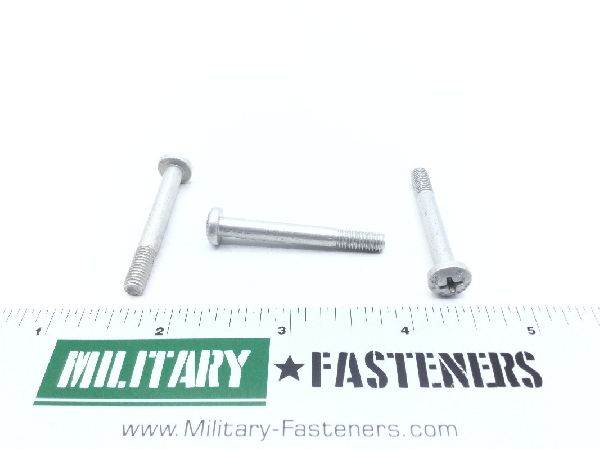

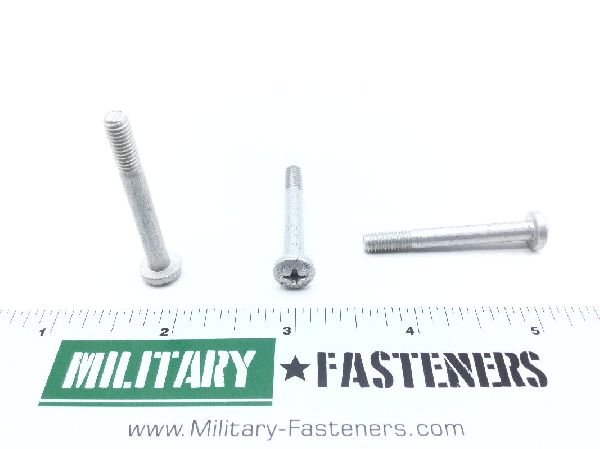

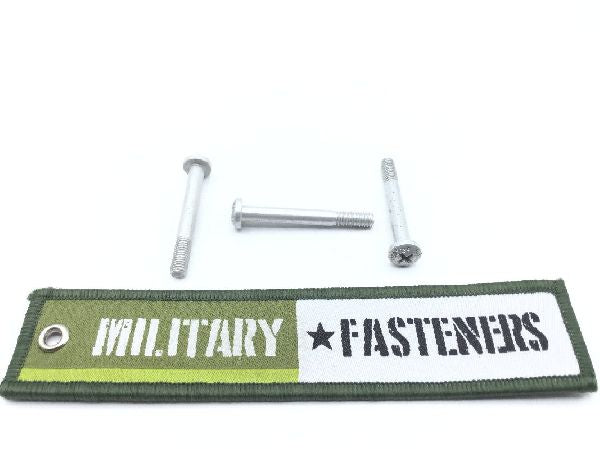

MS27039DD1-24 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.19

Units per Pack 20

Price per Pack $43.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.80

Add item to quote

Head Style

Pan

Material

Aluminum

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Fastener Length: Between 1.516 inches and 1.563 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Qq-a-225/6 federal specification single material response or mil-w-7986 military specification single material response
Min. Tensile Strength (psi): 62000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.377 inches and 0.516 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
