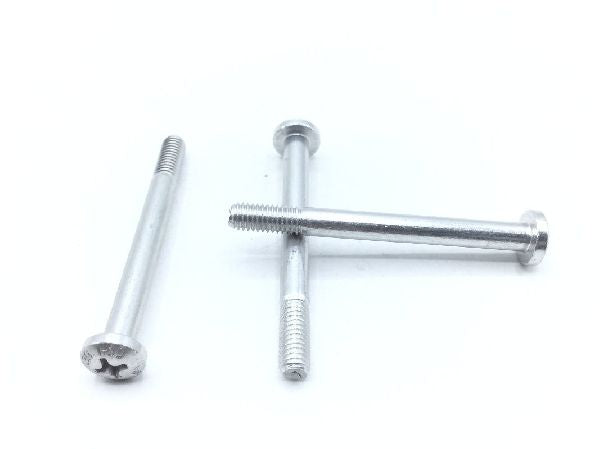

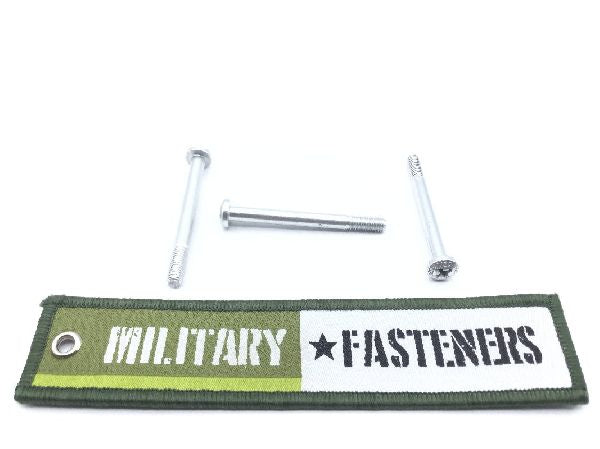

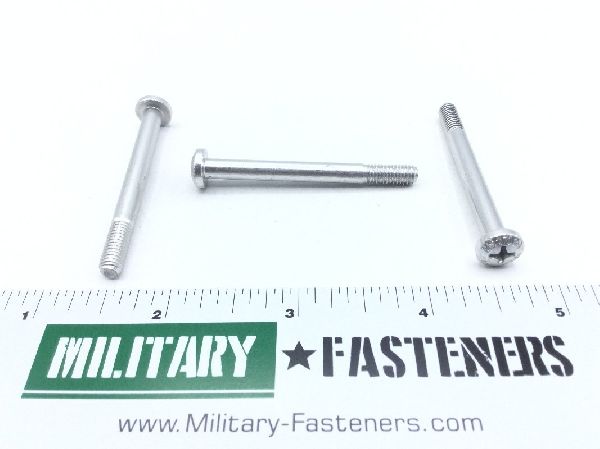

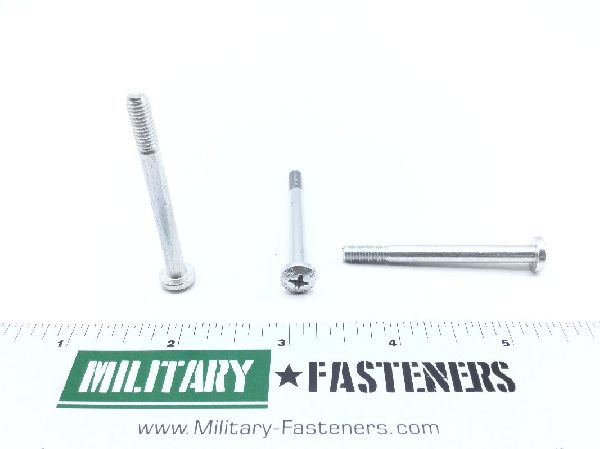

MS27039DD1-30 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Thread Class

Fastener Length: Between 1.891 inches and 1.938 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 62000 pounds per square inch
Screw Material: Aluminum alloy 2024
Screw Material Specification: T4 military specification 2nd material response mil-w-7986 military specification 1st material response or qq-a-225/6
Screw Surface Treatment Specification: Type 2 military specification 2nd treatment response type 1 military specification 1st treatment response or mil-a-8625 mil-a-8625
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.515 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.357 inches and 0.373 inches
