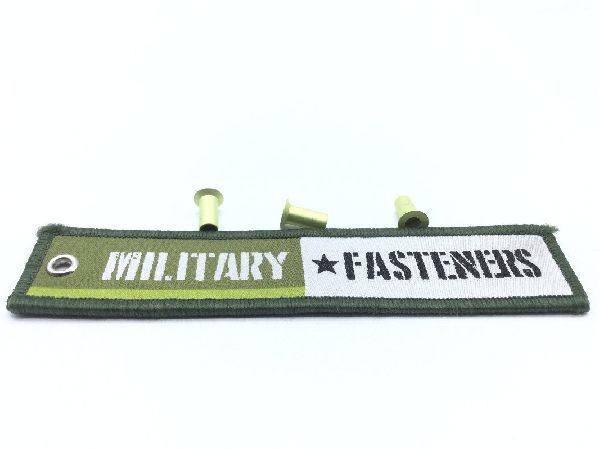

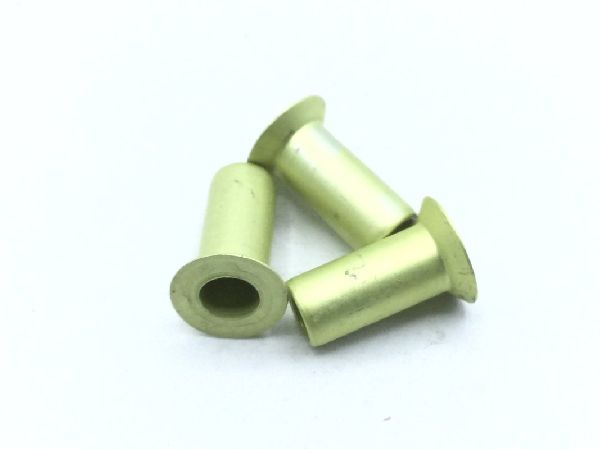

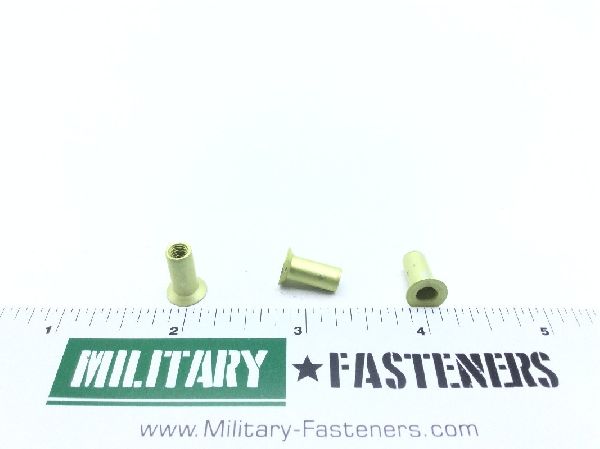

MS27130A93 Plain Blind Rivet Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat countersunk

Material

Aluminum alloy 6053

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Err Default: +0.065 to 0.106 inches
Head Countersink Angle: Between 99.0 degrees and 101.0 degrees
Material Specification: T4 federal specification single material response qq-a-430
Nut Diameter: Between 0.217 inches and 0.221 inches
Nut Length: Between 0.485 inches and 0.515 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Specification Data: 96906-ms27130 government standard
Supplementary Features: Supersedes nas1330a08-106 replaces nsn 5310-00-079-2368
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.355 inches
