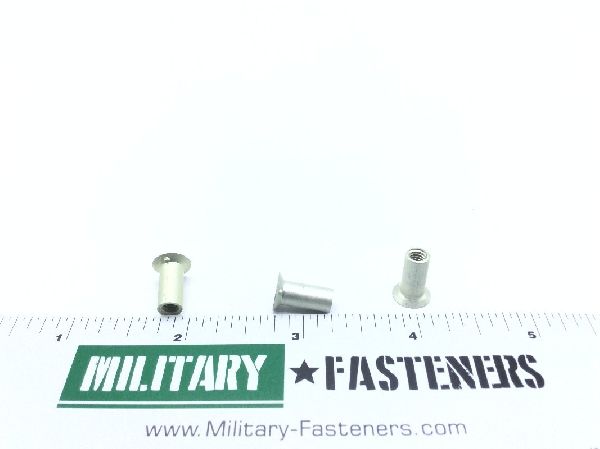

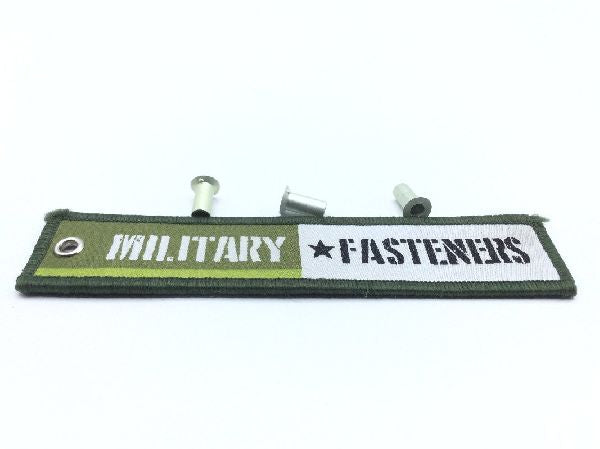

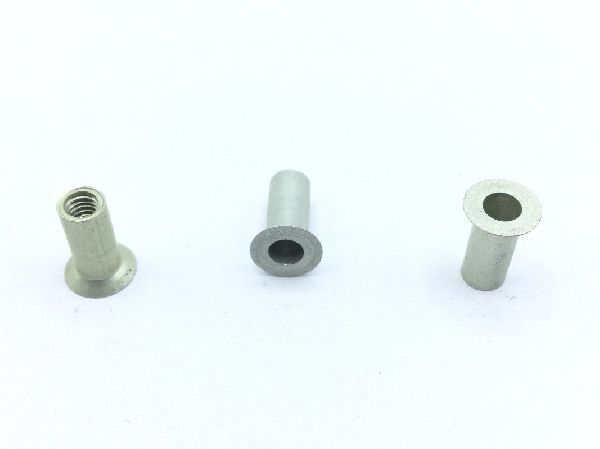

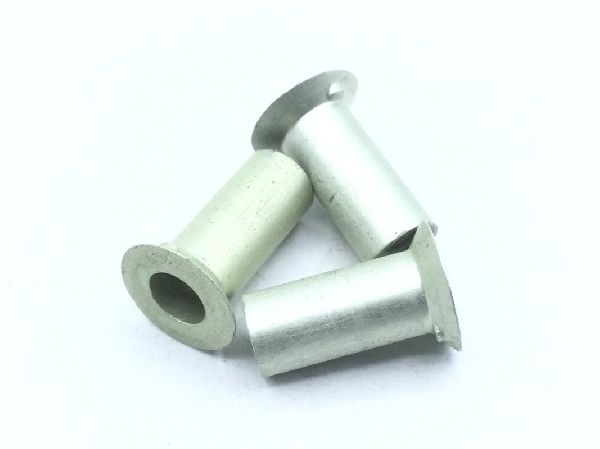

MS27130A93K Plain Blind Rivet Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk reverse keyed

Material

Aluminum alloy 6053

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Err Default: +0.065 to 0.106 inches
Head Countersink Angle: Between 99.0 degrees and 101.0 degrees
Head Height: 0.063 inches
Key Length: 0.059 inches
Material Specification: Except temper federal specification single material response qq-a-430
Nut Diameter: Between 0.217 inches and 0.221 inches
Nut Length: Between 0.485 inches and 0.515 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.355 inches
