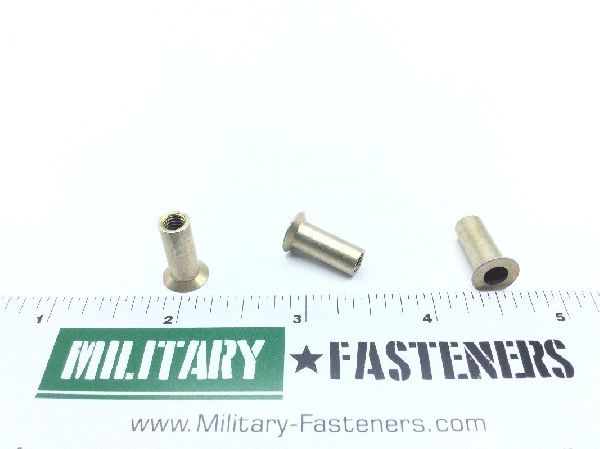

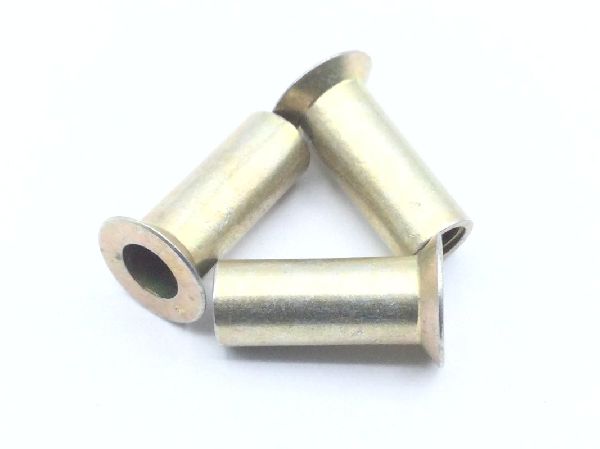

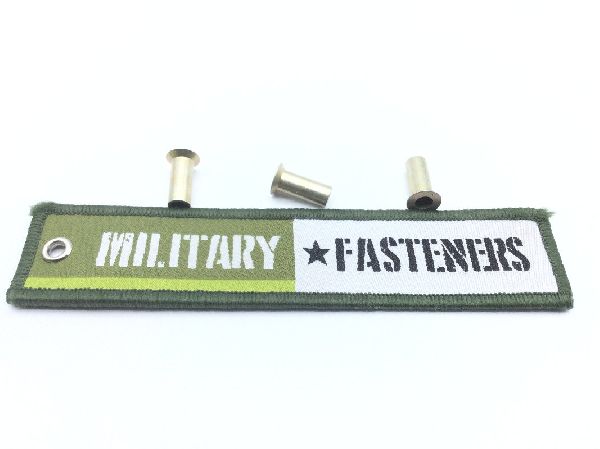

MS27130S100 Plain Blind Rivet Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 1108 or steel comp 1110

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

Err Default: +0.116 to 0.166 inches
Head Countersink Angle: 100.00 degrees
Material Specification: 66 federal standard all material responses
Nut Diameter: Between 0.246 inches and 0.250 inches
Nut Length: Between 0.610 inches and 0.640 inches
Nut Style: Blind rivet with smooth round shank
Shank End Type: Open
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
