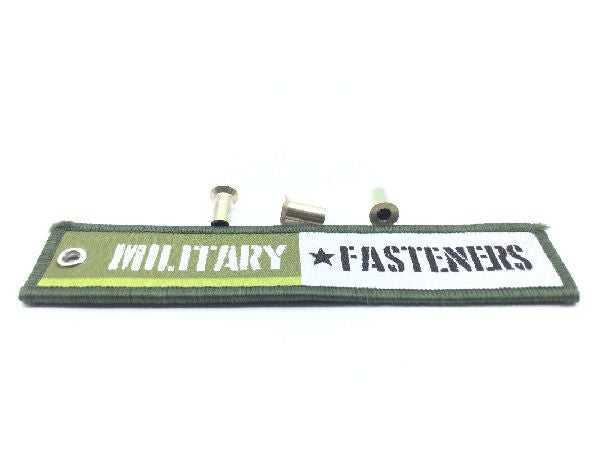

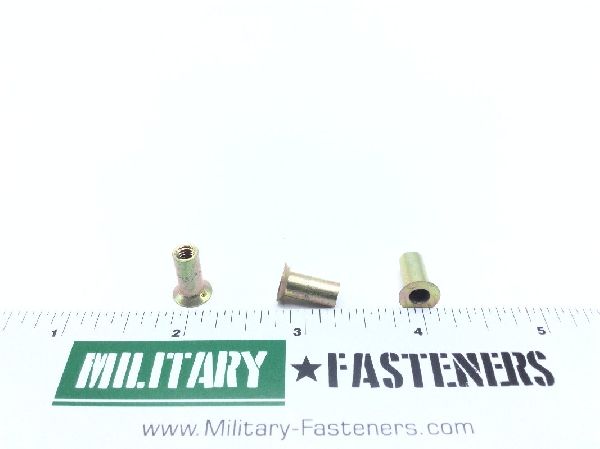

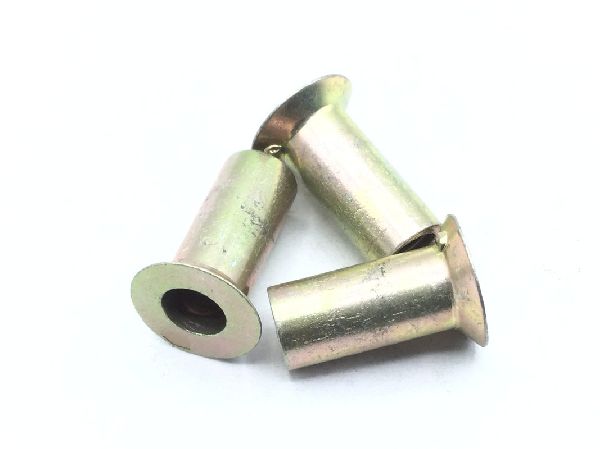

MS27130S93K Plain Blind Rivet Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat countersunk reverse keyed

Material

Steel comp 1108

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Err Default: +0.065 to 0.106 inches
Head Countersink Angle: Between 99.00 degrees and 101.00 degrees
Head Height: 0.063 inches
Key Length: 0.063 inches
Material Specification: Aisi assn standard single material response
Nut Diameter: Between 0.217 inches and 0.221 inches
Nut Length: Between 0.485 inches and 0.515 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.355 inches
