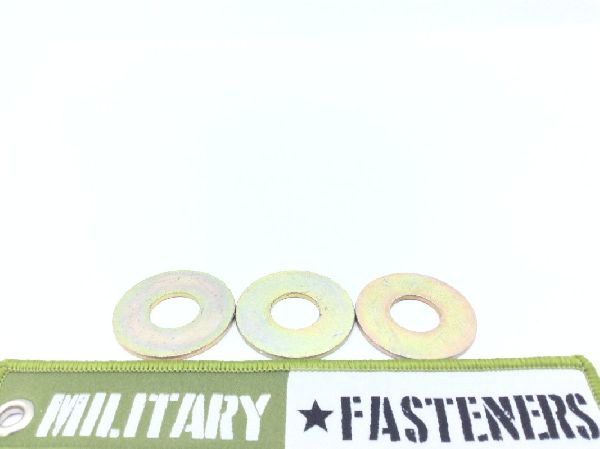

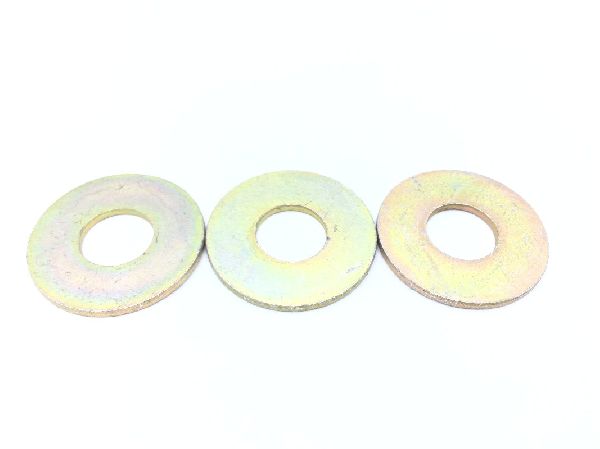

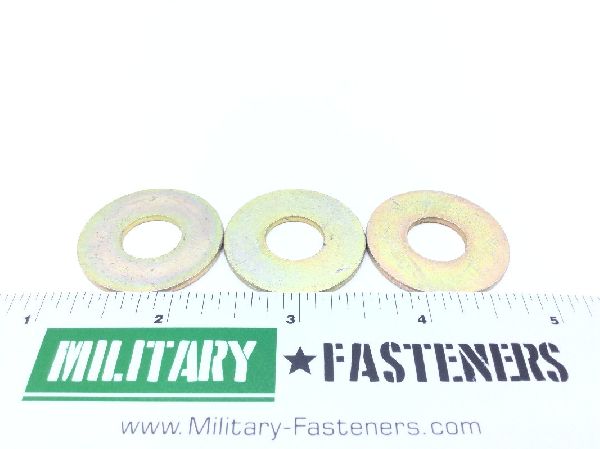

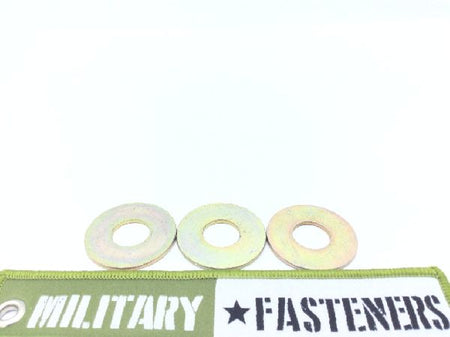

MS27183-17 Flat Washer

Product Series: MS
ECCN: EAR99
Schedule: 7318.22.0000

Price per Unit $0.44

Units per Pack 100

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Center Hole Shape: Round
Cross Sectional Shape: Rectangular
Edge Shape: Round
End Application: Mrap buffalo mk2a2
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: A type and 1 grade and a class
Overall Diameter: Between 1.243 inches and 1.280 inches
Thickness: Between 0.064 inches and 0.104 inches
Hole Diameter: Between 0.495 inches and 0.515 inches
