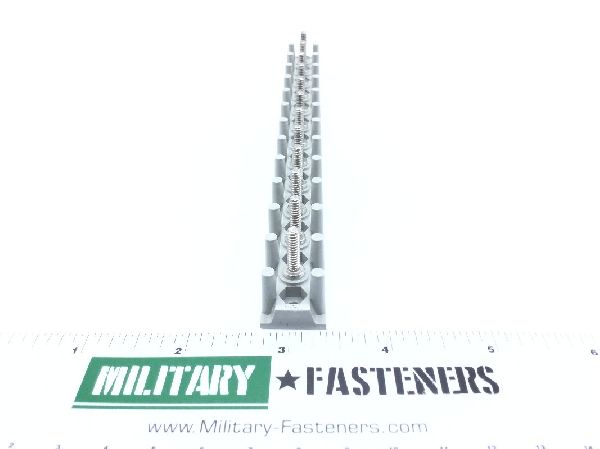

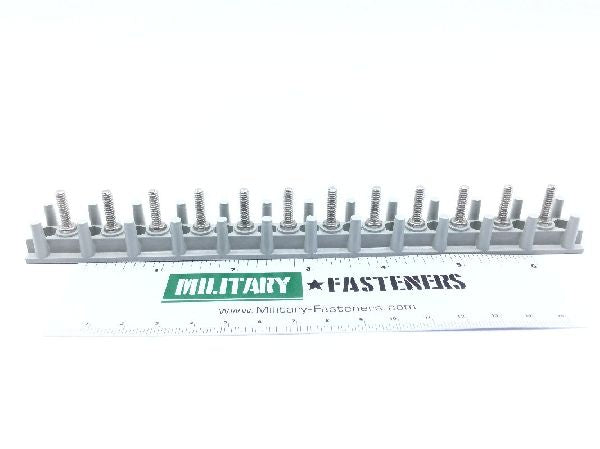

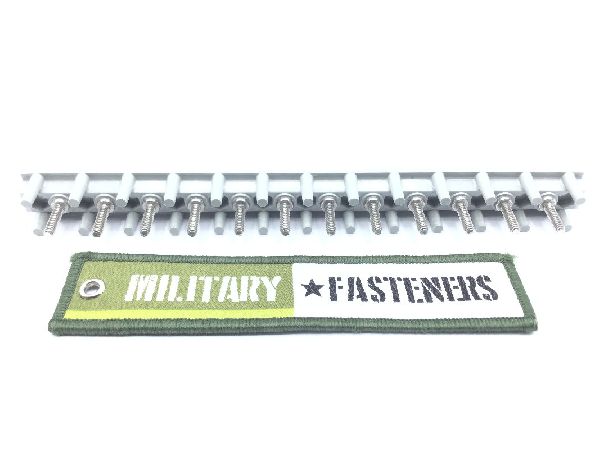

MS27212-1-12 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $61.60

Units per Pack 1

Price per Pack $61.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $61.60

Add item to quote

Material

Plastic diallyl phthalate board and glass fiber board

Base Thickness: 0.275 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 0.58 inches
Boardheight: 0.953 inches
Boardlength: 7.564 inches
Boardwidth: 0.688 inches
Body Style: Barrier standoff
Center To Center Distance Between Mounting Facilities Parallel T: 0.594 inches
Center To Center Distance Between Terminals: 0.594 inches
Distance From Bottom Edge Of Terminal Board To Center Of Mountin: 0.344 inches
Distance From Left Edge Of Terminal Board To Center Of First Mou: 0.218 inches
Material Specification: Mil-p-19833 military specification all material responses board
Mounting Facility Type And Quantity: 13 unthreaded hole
Mounting Hole Diameter: 0.115 inches
Nonfeedthru Terminal Quantity: 12 single
Nonfeedthru Terminal Type: 597 single
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Single row
Terminal Row Quantity: 1
