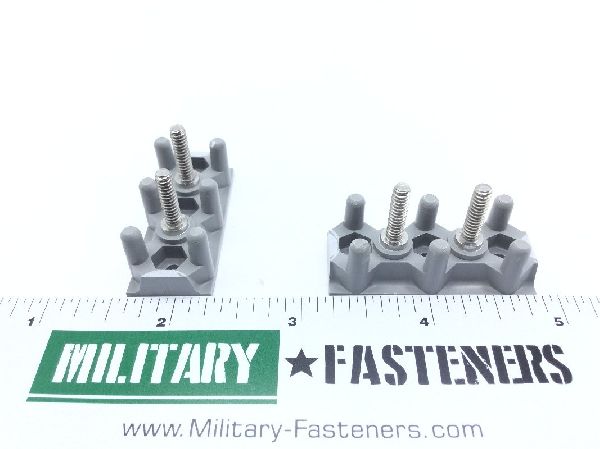

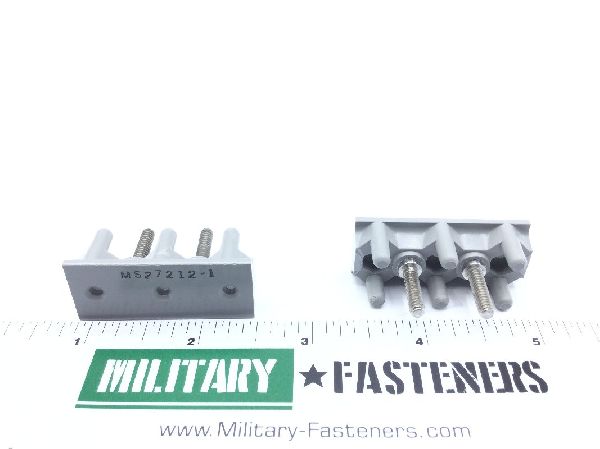

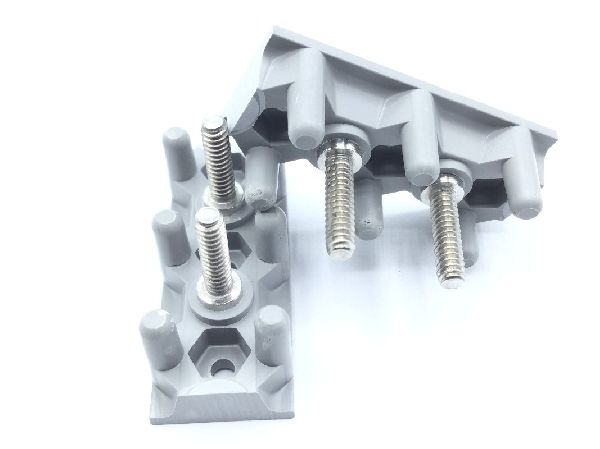

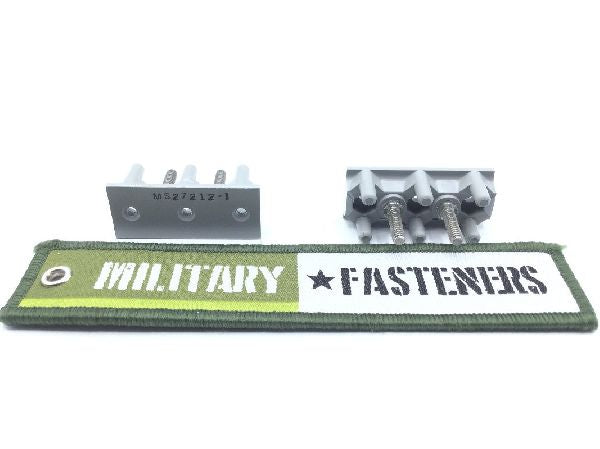

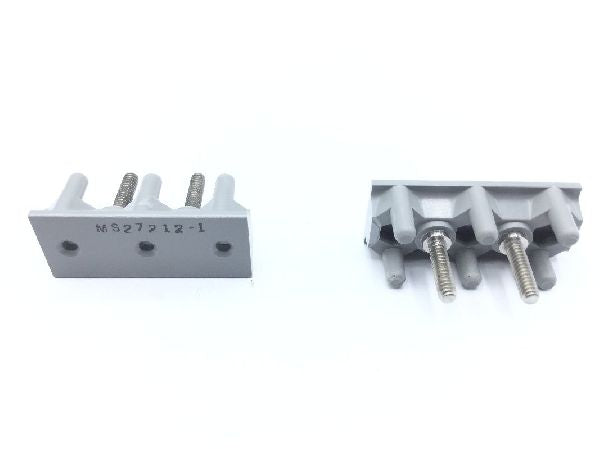

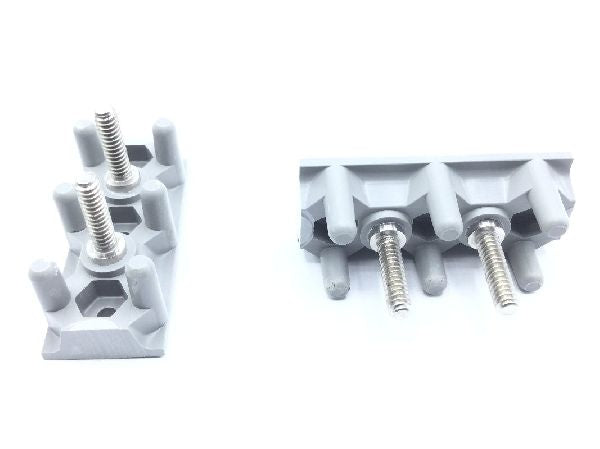

MS27212-1-2 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8538.90.7080

Price per Unit $29.40

Units per Pack 2

Price per Pack $58.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $58.80

Add item to quote

Material

Stainless steel terminals

Base Thickness: 0.275 inches
Board Construction: Solid construction
Board Height Excluding Terminals: 0.58 inches
Boardheight: 0.953 inches
Boardlength: 12.316 inches
Boardwidth: 0.688 inches
Body Style: Barrier standoff
Center To Center Distance Between Mounting Facilities Parallel T: 0.594 inches
Center To Center Distance Between Terminals: 0.594 inches
Dielectric Withstanding Voltage In Volts: 2500
Distance From Bottom Edge Of Terminal Board To Center Of Mountin: 0.344 inches
Distance From Left Edge Of Terminal Board To Center Of First Mou: 0.218 inches
Mounting Facility Type And Quantity: 21 unthreaded hole
Mounting Hole Diameter: 0.115 inches
Nonfeedthru Terminal Quantity: 20 single
Nonfeedthru Terminal Type: 597 single
Special Features: Cut to desiredsize at point of installation 20 max non-feed-through terminals
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Single row
