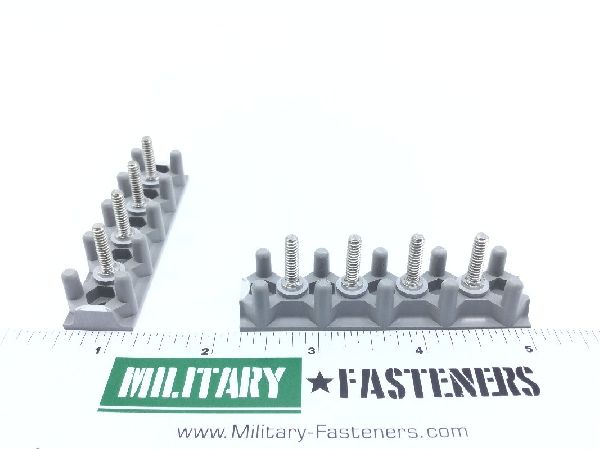

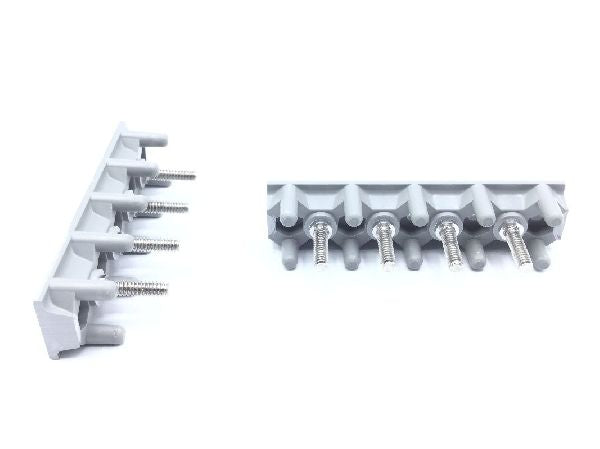

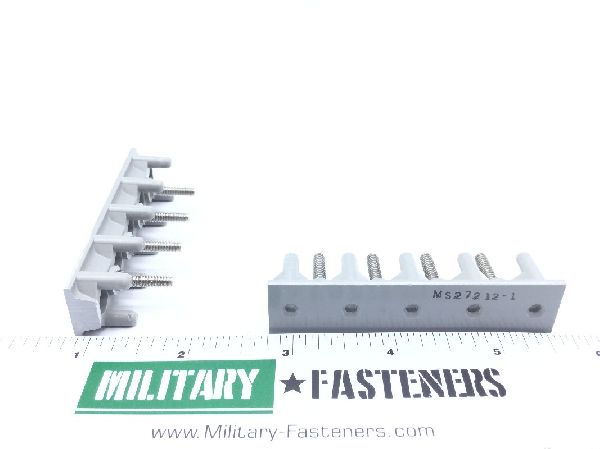

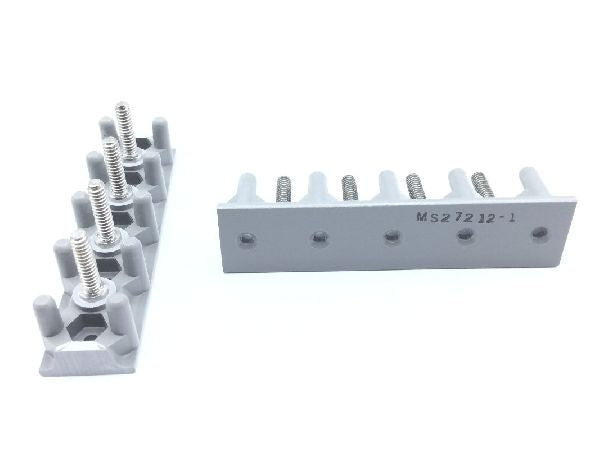

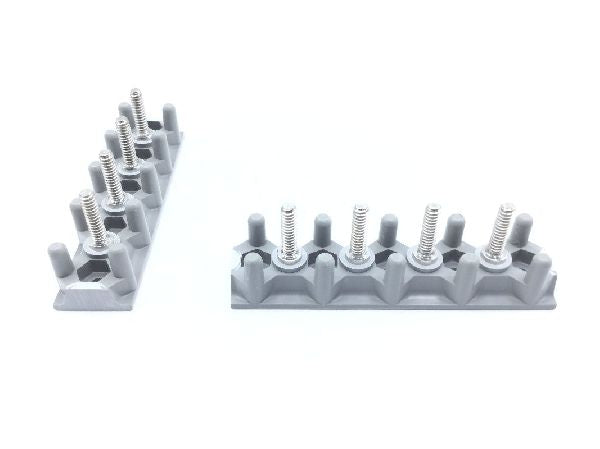

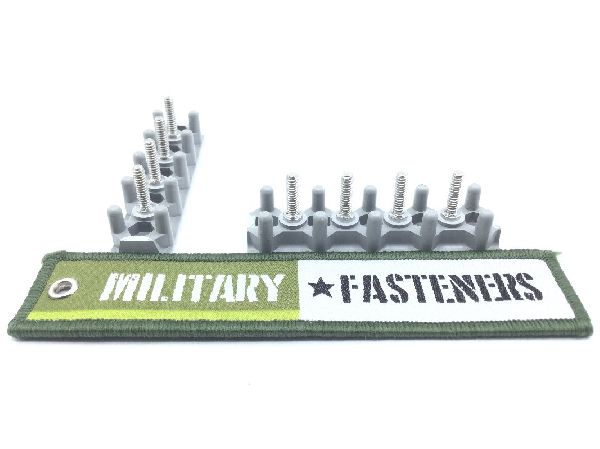

MS27212-1-4 Terminal Board

Product Series: MS
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $27.56

Units per Pack 2

Price per Pack $55.12

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $55.12

Add item to quote

Material

Plastic diallyl phthalate board and glass fiber board

Board Construction: Solid construction
Board Thickness: 0.071 inches
Boardlength: 2.464 inches
Boardwidth: 0.688 inches
Body Style: Strip type
Center To Center Distance Between Terminals: 0.594 inches
Dielectric Withstanding Voltage In Volts: 2.5
Distance Between Terminal Row Centers: 0.35 inches
Material Specification: Mil-p-19833 military specification all material responses board
Nonfeedthru Terminal Quantity: 4 single
Nonfeedthru Terminal Type: 439 single
Terminal Design: Nonfeedthru
Terminal Pattern Arrangement: Single row
Terminal Row Quantity: 1
